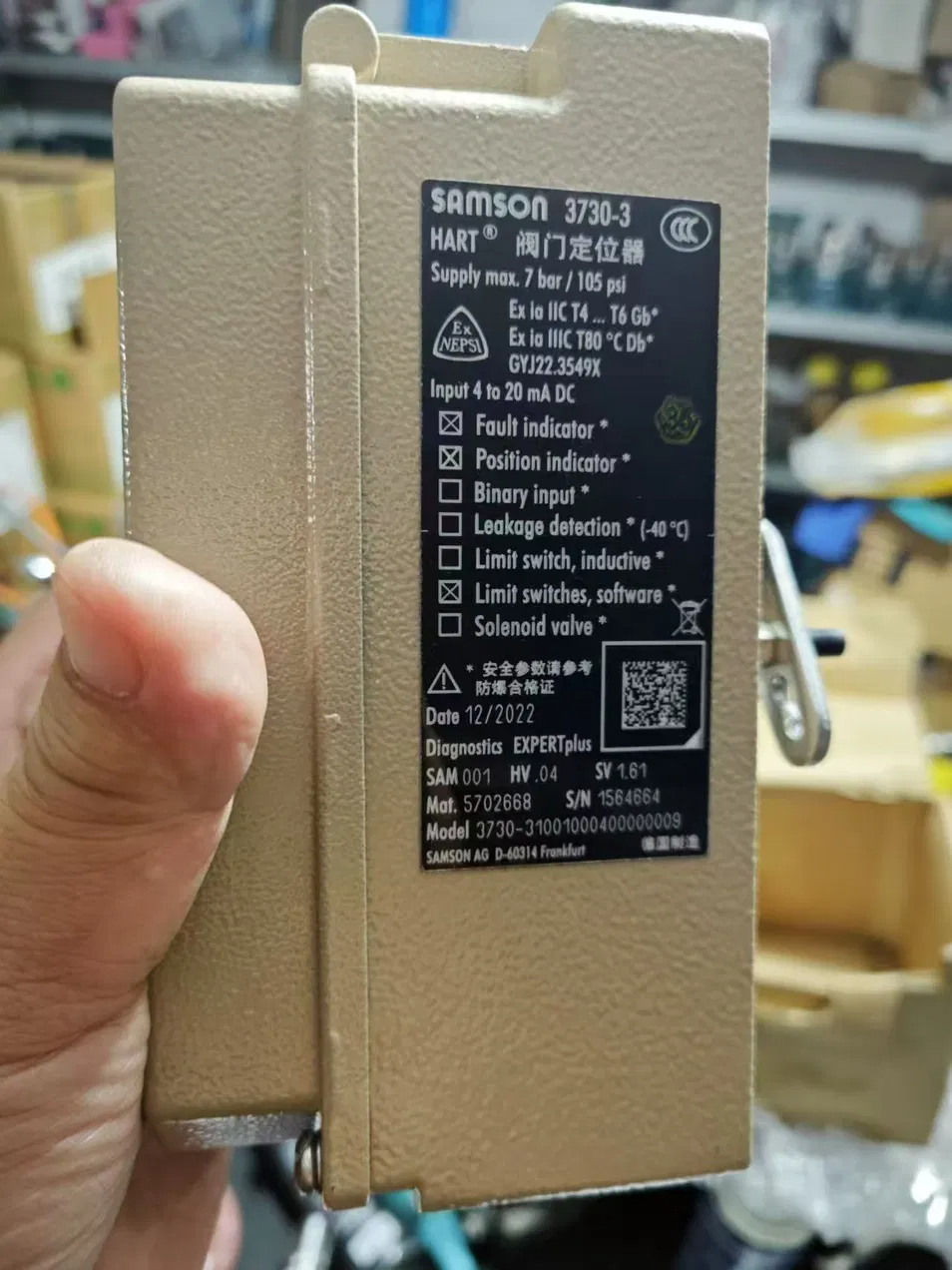

3730-3 Electropneumatic Positioner with Hart Communication
Product Description
3730-3 Electro Pneumatic positioner(HART)
The Type 3730 electro-pneumatic positioner series is designed to work with general industrial applications. This positioner series includes several model versions to meet any end user or process requirements. Basic control positioners are the 3730-0 and 3730-1.
Starting with the 3730-2 the positioner includes full function parameterization and advanced diagnostics. Above the 3730-2 SAMSON introduces communication protocol such as HART (3730-3), Profibus (3730-4), and Foundation Fieldbus (3730-5). Full function parameterization includes characterizing the reference variable, travel range, characteristic (i.e. linear and equal percentage), and performance characteristics (i.e. PID control coefficients). Advance diagnostics includes functions like status message logging, data logging, histograms (travel setpoint deviation, and cycle counter), drive signals (steady and hysteresis), end position trending, static characteristic testing, partial stroke testing, and full stroke testing.
Starting with the 3730-2 the positioner includes full function parameterization and advanced diagnostics. Above the 3730-2 SAMSON introduces communication protocol such as HART (3730-3), Profibus (3730-4), and Foundation Fieldbus (3730-5). Full function parameterization includes characterizing the reference variable, travel range, characteristic (i.e. linear and equal percentage), and performance characteristics (i.e. PID control coefficients). Advance diagnostics includes functions like status message logging, data logging, histograms (travel setpoint deviation, and cycle counter), drive signals (steady and hysteresis), end position trending, static characteristic testing, partial stroke testing, and full stroke testing.
Special features
Input Signal: 4 - 20 mA
Valve Travel: 3.6 to 300 mm (linear), opening angle 24 to 100° (angular)
Electrical Load: Small two-wire system with 300 - 350 Ω at 20 mA (for some models)
Protection Level: IP66
Operating Temperature Range: -40°C to 60°C (some data shows this range, may vary by version)
Communication Protocol: HART (standard), can be integrated into the process control system and asset management system through this protocol
Mounting Standards: Can be connected to linear actuators according to IEC 60534-6, VDI/VDE 3847 or Samson integral accessories; connected to rotary actuators according to VDI/VDE 3845
Rated Operating Pressure: Up to 16 bar (some models), or 7 bar (varies by version)
Rated Flow Coefficient: Up to maximum CV value of 470
Valve Travel: 3.6 to 300 mm (linear), opening angle 24 to 100° (angular)
Electrical Load: Small two-wire system with 300 - 350 Ω at 20 mA (for some models)
Protection Level: IP66
Operating Temperature Range: -40°C to 60°C (some data shows this range, may vary by version)
Communication Protocol: HART (standard), can be integrated into the process control system and asset management system through this protocol
Mounting Standards: Can be connected to linear actuators according to IEC 60534-6, VDI/VDE 3847 or Samson integral accessories; connected to rotary actuators according to VDI/VDE 3845
Rated Operating Pressure: Up to 16 bar (some models), or 7 bar (varies by version)
Rated Flow Coefficient: Up to maximum CV value of 470
Advantages
High-precision Positioning: Achieves high-precision position control through advanced microprocessor technology, ensuring precise adjustment of valve opening, with an error correction accuracy of up to ±0.5%.
Energy Efficiency: Compared with the previous series, the air consumption is reduced by half, and the pneumatic control loop is more energy-efficient.
Strong Environmental Adaptability: With an IP66 protection level, it can adapt to harsh industrial environments such as high temperature, humidity, and corrosive gases.
Long Service Life: The non-wear electromagnetic drive structure extends the maintenance cycle by more than 30%.
User-friendly Operation: The single-knob button operation and multi-language display make parameter setting and configuration debugging easy. The variable automatic start and preset parameter design reduce the setup workload.
Modular Design and Expandability: Supports the integration of accessories such as reverse pneumatic amplifiers and limit switches, enhancing system flexibility. It also has certain compatibility with multi-axis collaborative automation systems (such as being modularly designed and compatible with EtherCAT communication protocol in some aspects).
Reliable Safety Performance: Certified by IEC 61508/SIL, and specifically designed for emergency shutdown systems, which can ensure safety in harsh industrial environments and emergency situations.
Energy Efficiency: Compared with the previous series, the air consumption is reduced by half, and the pneumatic control loop is more energy-efficient.
Strong Environmental Adaptability: With an IP66 protection level, it can adapt to harsh industrial environments such as high temperature, humidity, and corrosive gases.
Long Service Life: The non-wear electromagnetic drive structure extends the maintenance cycle by more than 30%.
User-friendly Operation: The single-knob button operation and multi-language display make parameter setting and configuration debugging easy. The variable automatic start and preset parameter design reduce the setup workload.
Modular Design and Expandability: Supports the integration of accessories such as reverse pneumatic amplifiers and limit switches, enhancing system flexibility. It also has certain compatibility with multi-axis collaborative automation systems (such as being modularly designed and compatible with EtherCAT communication protocol in some aspects).
Reliable Safety Performance: Certified by IEC 61508/SIL, and specifically designed for emergency shutdown systems, which can ensure safety in harsh industrial environments and emergency situations.
Specification
SPECIFICATIONS | DETAILS |
Input Signal | 4 - 20 mA |
Valve Travel | 3.6 - 300 mm (linear) 24 - 100° (angular) |
Supply Pressure | 1.4 - 7 bar |
Maximum Output Pressure | 0 - 6 bar |
Electrical Load | Small two-wire system, 410 Ω |
Protection Level | IP66 |
Operating Temperature Range | -40°C to 80°C |
Communication Protocol | HART |
Mounting Standards | For linear actuators: according to IEC 60534-6, VDI/VDE 3847, or Samson integral attachment For rotary actuators: according to VDI/VDE 3845 |
Explosion Protection | ATEX EExi/EExA/nl, FM/intrinsic safety/spark-free, ATEX EExd with field barrier (see type 3731-3) |
Position Sensing | Non-contact |
Housing Material | Die-cast aluminum (standard), stainless steel (optional) |
Adjustment Functions | Adjustable output pressure limitation, adjustable tight-closing function, automatic zero monitoring |
Diagnostic Function | Integrated expert plus diagnostics, complies with NAMUR recommendation NE 107 |
Other Features | Integrated temperature sensor and running time counter, two standard programmable position alarms |
