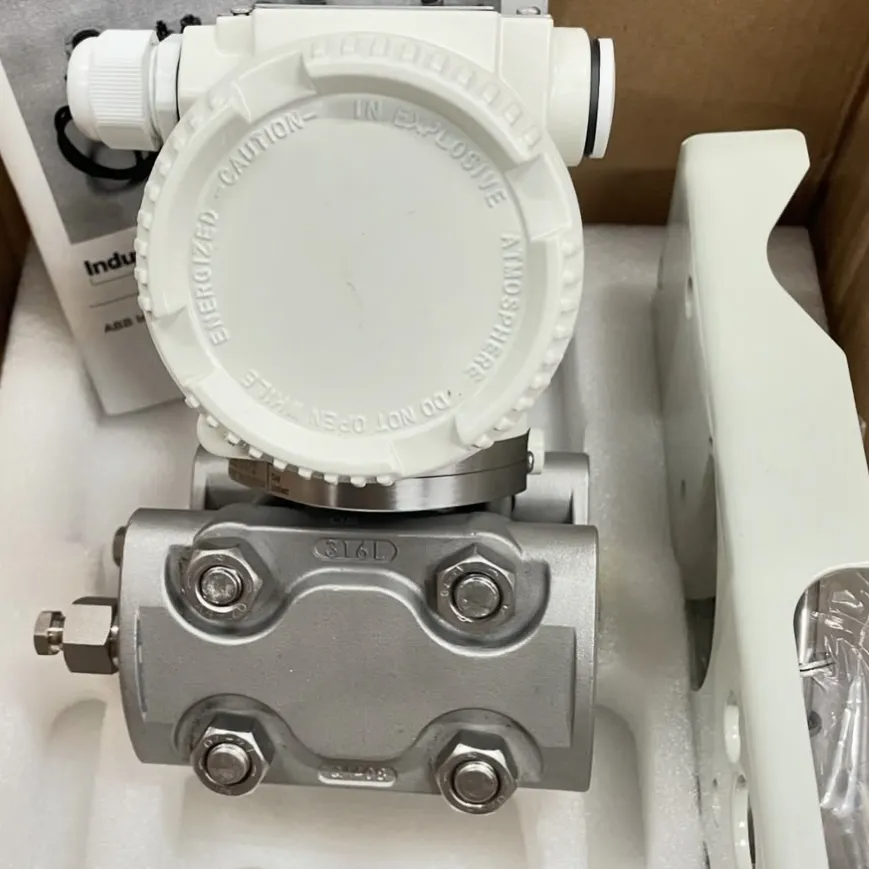

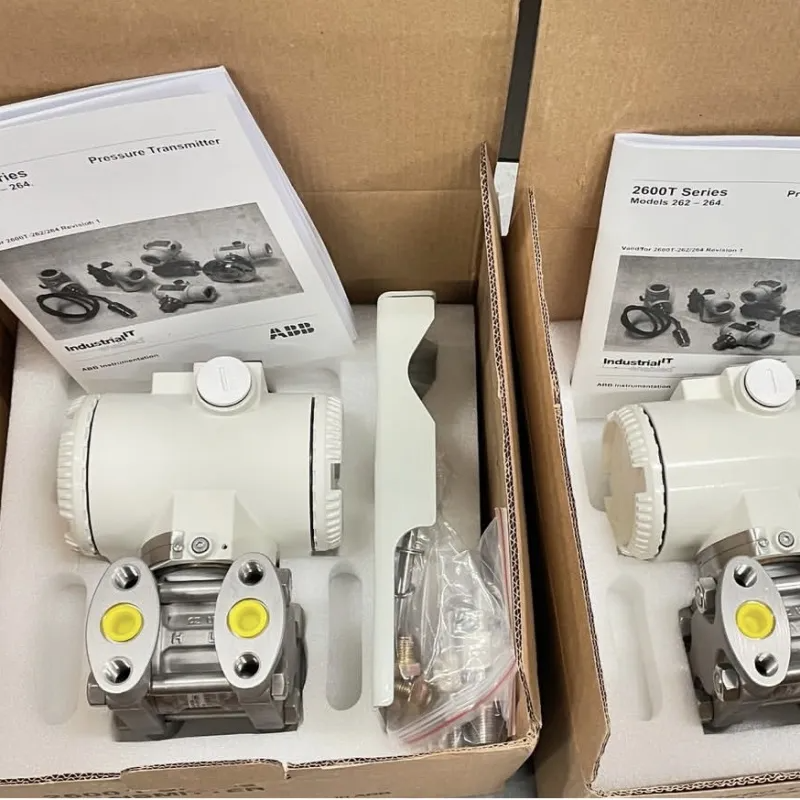

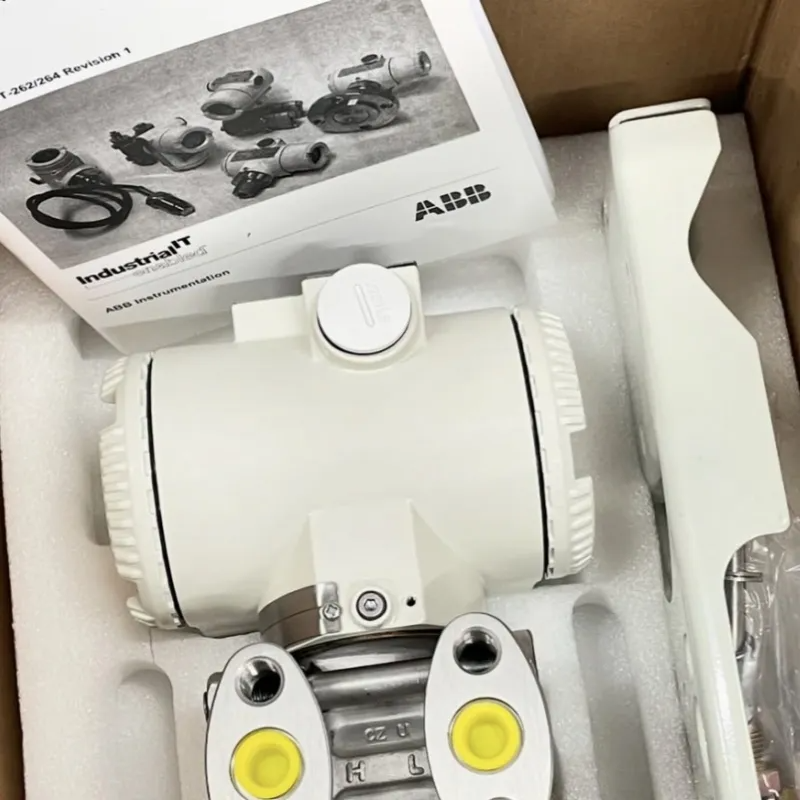

Original and New Abbb 2600t 264ds Differential Pressure Transmitter

ABBB 264DS Differential Pressure Transmitter

The ABBB 264DS Differential Pressure Transmitter measures a wide range of differential pressures. Ranges are available from .54 in H2O to 2320 psi. The diaphragm material along with process flanges are available in
several different materials such as 316 stainless steel, Hastelloy C276, Tantalum and Monel 400. Several choices of fill fluids and process connections are offered and there are all the 2600T options to choose from such as HART / 4-20 mA, PROFIBUS PA, and FOUNDATION Fieldbus communications.
There are also optional output meters and a new integral digital
LCD display which allows configuration ability at the transmitter.

The 264DS is backed by a 5 year stability warranty which guarantees long term performance.

The ABBB 264DS is a high - performance differential pressure transmitter. It has a reliable sensing system combined with advanced digital technologies. The maximum working pressure can reach up to 21 Mpa (3045 psi). It offers a wide turn - down ratio of up to 100:1, and the span limits are from 0.05 to 16000 kpa (0.2 in H2O to 2320 psi). With a base accuracy of ±0.075%, it supports integration with HART®, Profibus PA, and Foundation Fieldbus platforms, providing interchangeability and transmitter upgrade capabilities. Configuration can be done locally through local keys in combination with an LCD indicator, or via a handheld terminal or PC configuration platform. Moreover, it is fully compliant with PED category IV, making it suitable for safety - related accessory applications.

Applications:
The ABBB 264DS differential pressure transmitter is suitable for a variety of industries and applications, such as power, chemical, petrochemical, paper - making, building materials, water treatment, and other industries3. It can be used to accurately measure the pressure, liquid level, and flow rate of various media, and is especially suitable for occasions that require high - accuracy measurement and reliable operation, such as in the process control of chemical production lines and the monitoring of water treatment systems.

Product Details

The ABBB 266 series intelligent pressure transmitter has excellent reliability, efficiency, safety and versatile performance. It meets the wide application and extremely harsh working condition of the factory. It is suitable for power, chemical, petrochemical, papermaking, building materials, water treatment and many other industries.

Users can easily get the appropriate application solutions to achieve the highest accuracy of 0.025%, thus improving the efficiency of factory production and saving operation and maintenance costs. 266 intelligent transmitter maximum range 100:1, reliable operation, stable performance, long-term drift less than 0.15%URL/10 years
