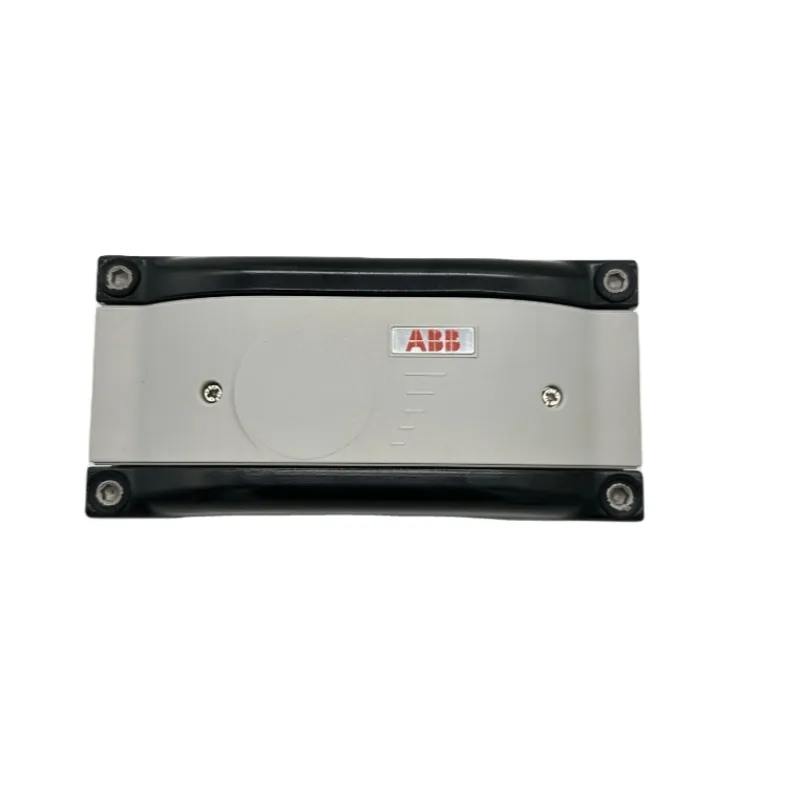

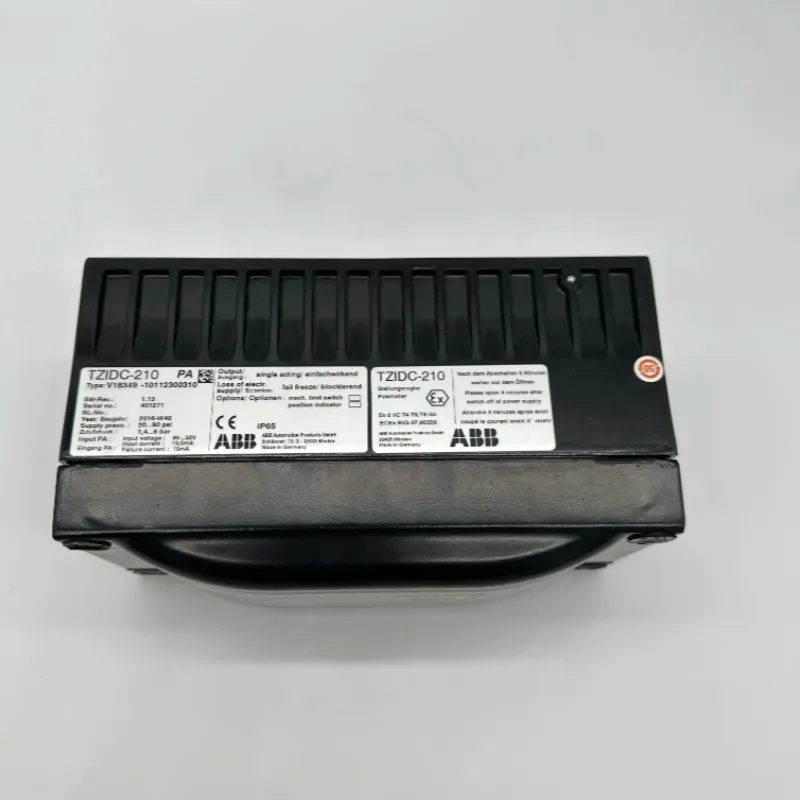

Abb Profibus PA ABB Tzidc-210 Electro-Pneumatic Valve Positioner
Product Description
Features
Manual intervention during live operation
Linear or Rotary actuation
Single or Double acting models
Reduced operating cost with very low air consumption of 0.015scfm at steady state
16000 step A/D conversion provides unsurpassed positioning accuracy (rev 3.00)
One device for single and double acting applications
One device for Linear and Part turn actuators
Adaptive Gain allows real time optimization of control parameters
Linear or Rotary actuation
Single or Double acting models
Reduced operating cost with very low air consumption of 0.015scfm at steady state
16000 step A/D conversion provides unsurpassed positioning accuracy (rev 3.00)
One device for single and double acting applications
One device for Linear and Part turn actuators
Adaptive Gain allows real time optimization of control parameters
Application
Chemical & Petrochemical: Precise control of corrosive fluids, high-pressure processes.
Power Generation: Steam/gas turbine control, boiler feedwater regulation.
Oil & Gas: Onshore/offshore platforms, pipeline control, emergency shutdown systems.
Pharmaceutical & Food: Hygienic applications requiring accurate flow/pressure control.
Water & Wastewater: Treatment plant automation, pump control, and level regulation.
Power Generation: Steam/gas turbine control, boiler feedwater regulation.
Oil & Gas: Onshore/offshore platforms, pipeline control, emergency shutdown systems.
Pharmaceutical & Food: Hygienic applications requiring accurate flow/pressure control.
Water & Wastewater: Treatment plant automation, pump control, and level regulation.
Specification
Category | Specifications |
Model Number | V18349 (TZIDC-210) |
Communication Protocol | Profibus PA |
Input Signal | Profibus PA |
Actuator Types | Single-acting and double-acting pneumatic actuators |
Valve Compatibility | Linear (stroke range: 20 - 150 mm) and rotary (up to 125°) valves |
Air Supply | Pressure: 1.4 - 6 bar; Air consumption: ≤ 0.03 kg/h; Air capacity: ≥ 13.5 kg/h |
Mounting | Linear actuators: According to DIN/IEC 534/NAMUR; Rotary actuators: According to VDI/VDE 3845 |
Environmental Rating | IP65/NEMA 4X (standard), can be IP67; Temperature: -40°C to +85°C; Vibration resistance: Up to 10 g (10 - 80 Hz) or 2 g (300 Hz for remote sensor version) |
Explosion Protection | ATEX Ex 2G EEx d IIC T4, T5, T6; FM Class 1, Div. 1, Group C - D (explosion-proof) |
Dimensions | Compact design, specific dimensions not widely published but modular and suitable for standard mounting |
Weight | Not widely published, typically compact and lightweight for its functionality |
Certifications | ATEX, FM/ (explosion-proof/intrinsically safe) Marine certification (optional) |
Display/Interface | 2-line LCD with 4-button control panel Remote configuration via Foundation Fieldbus |
Control Features | Auto-tuning, dead zone adjustment, control parameter adaptation, shear function for signal loss |
Diagnostics | FDT/DTM compliant for remote monitoring and troubleshooting |
Dimensions | Approx. 240 × 150 × 100 mm (housing) |
Weight | Approx. 2.5 kg (without accessories) |
Applications | Chemical, petrochemical, power generation, hazardous areas |
