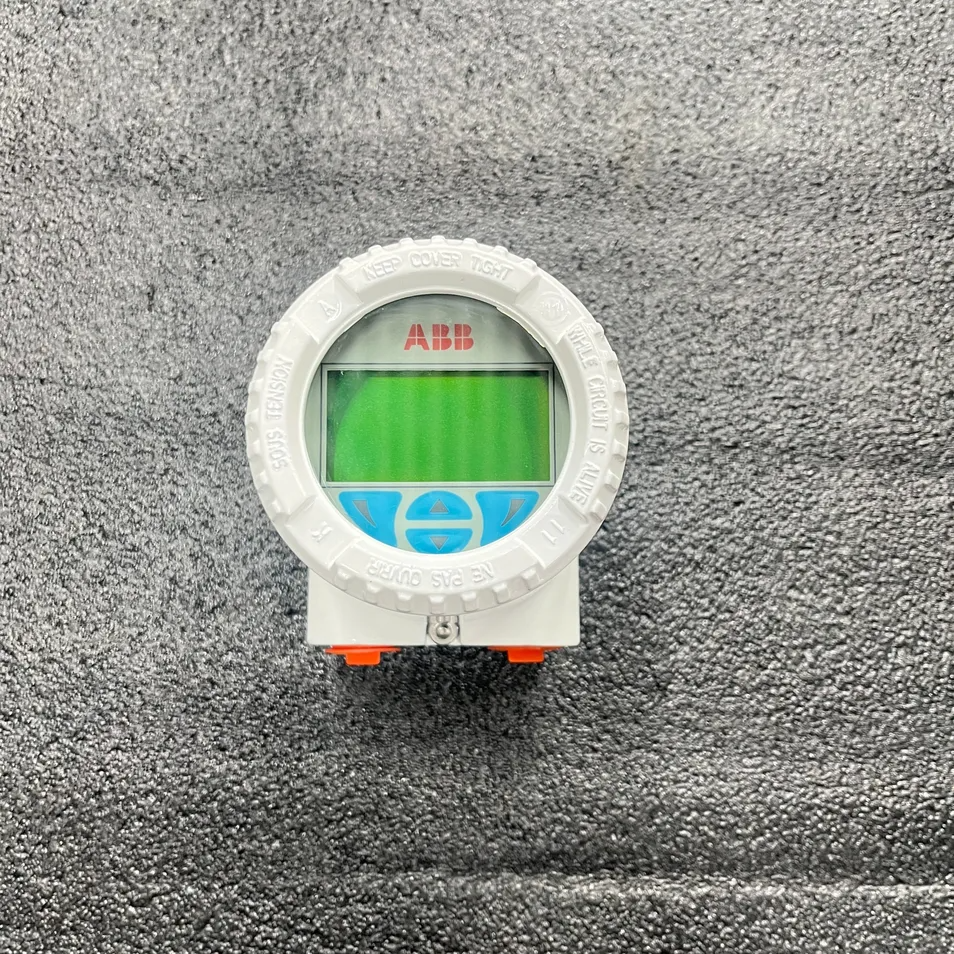

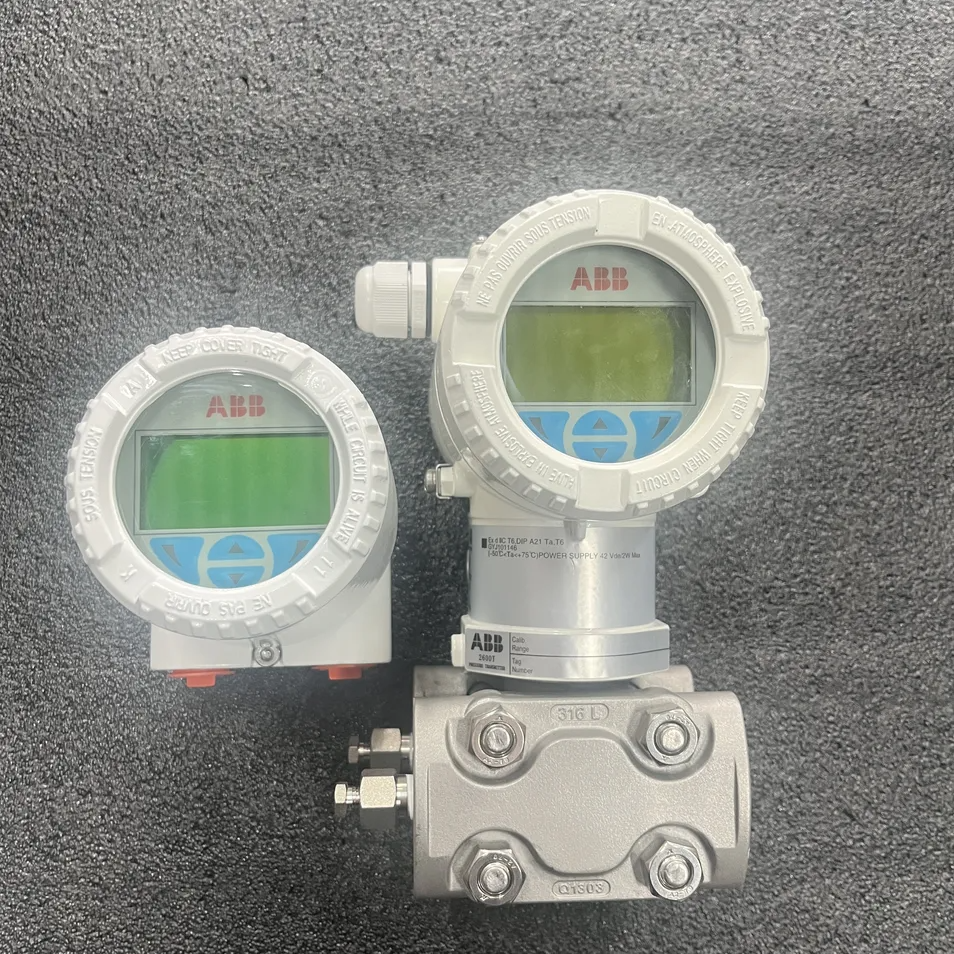

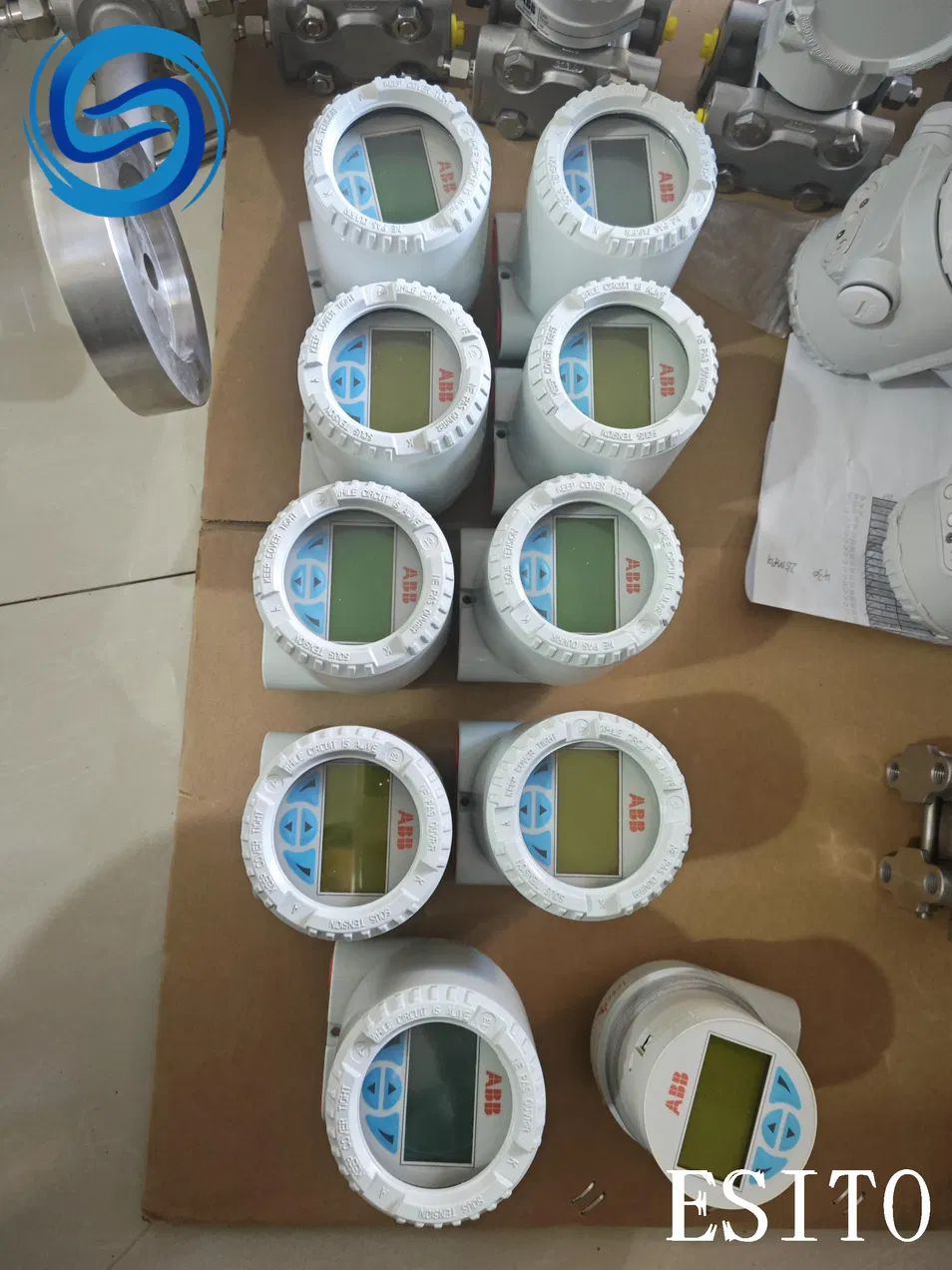

Field-mount temperature transmitter TTF300
The ABB TTF300 is a two - channel temperature transmitter available with HART, Profibus PA, or Foundation Fieldbus communication protocols. It adopts proven two - wire technology and features a multitude of new functions and enhanced diagnostic information. The transmitter can be configured via FDT/DTM in DAT200 (Asset Vision Basic) or any standard FTD tool via EDD or local HMI (optional). It also supports the Field Information Manager (FIM) via FDI technology.
Temperature transmitter for all communication protocols.
ABBB common operating concept.
ABBB common operating concept.
Redundancy when two sensors are connected
Applications
Oil and Gas Industry: It is used to measure the temperature of various fluids and gases in oil fields, refineries, and gas processing plants. For example, it can monitor the temperature of crude oil in pipelines or the temperature of gases in storage tanks.
Petrochemical Industry: In petrochemical plants, the TTF300 is employed to measure the temperature of chemical reaction vessels, distillation columns, and other equipment. This helps in ensuring the proper functioning of the processes and maintaining product quality.
Cement Industry: The TTF300 is installed on rotary cement kilns to monitor the temperature of the bearings. By doing so, it helps to prevent bearing damage caused by overheating, ensuring the continuous operation of the kiln and the smooth production of cement.
Petrochemical Industry: In petrochemical plants, the TTF300 is employed to measure the temperature of chemical reaction vessels, distillation columns, and other equipment. This helps in ensuring the proper functioning of the processes and maintaining product quality.
Cement Industry: The TTF300 is installed on rotary cement kilns to monitor the temperature of the bearings. By doing so, it helps to prevent bearing damage caused by overheating, ensuring the continuous operation of the kiln and the smooth production of cement.
Features
Universal Sensor Input: It has two universal sensor inputs, which can accept RTD, thermocouple, ohm, and mV signals, providing flexibility in sensor selection.
Sensor Error - Calibration: It offers various sensor error - calibration possibilities, including one - point, two - point, Callendar - van - Dusen, and freestyle characteristics with 32 supporting points, ensuring accurate temperature measurement.
Sensor Backup and Redundancy: With sensor backup / automatic sensor redundancy switching (2 x Pt100 3 - wire connection), it can enhance the reliability of the measurement system. If one sensor fails, the other can take over immediately.
High - Quality Housing: The transmitter has an IP66/IP67 - rated, NEMA 4X aluminum or stainless - steel field - mount housing, which is suitable for both indoor and outdoor environments and can withstand harsh industrial conditions.
Large LCD Display: It is equipped with a large, user - friendly LCD indicator type B with TTF300 configuration options, which allows for easy viewing of measurement data and convenient configuration of the transmitter.
Sensor Error - Calibration: It offers various sensor error - calibration possibilities, including one - point, two - point, Callendar - van - Dusen, and freestyle characteristics with 32 supporting points, ensuring accurate temperature measurement.
Sensor Backup and Redundancy: With sensor backup / automatic sensor redundancy switching (2 x Pt100 3 - wire connection), it can enhance the reliability of the measurement system. If one sensor fails, the other can take over immediately.
High - Quality Housing: The transmitter has an IP66/IP67 - rated, NEMA 4X aluminum or stainless - steel field - mount housing, which is suitable for both indoor and outdoor environments and can withstand harsh industrial conditions.
Large LCD Display: It is equipped with a large, user - friendly LCD indicator type B with TTF300 configuration options, which allows for easy viewing of measurement data and convenient configuration of the transmitter.
Specification
Item | Valve |
General | |
Model | TTF300 |
Communication Protocols | HART, Profibus PA, Foundation Fieldbus |
Input | |
Sensor Types | RTD, thermocouple, ohm, mV |
Number of Inputs | Two universal sensor inputs |
Sensor Redundancy | Sensor backup / automatic sensor redundancy switching (2 x Pt100 3 - wire connection) |
Measurement Range | -200 to 850 °C (-328 to 1562 °F) |
Output | |
Signal | 4 - 20 mA (temperature - linear), HART signal |
Accuracy and Stability | |
Accuracy | 0.1% |
Long - term Stability | 0.05% per year |
Power Supply | |
Voltage | 11 - 42 VDC |
Housing | |
Material | IP66/IP67 - rated, NEMA 4X aluminum or stainless - steel |
Display | |
Type | Large, user - friendly LCD indicator type B with TTF300 configuration options |
