ABB V18347 Tzidc-120 Foundation Fieldbus Communication Digital Valve Positioner
Product Description
V18347| TZIDC Electro-Pneumatic Positioner | ABBb

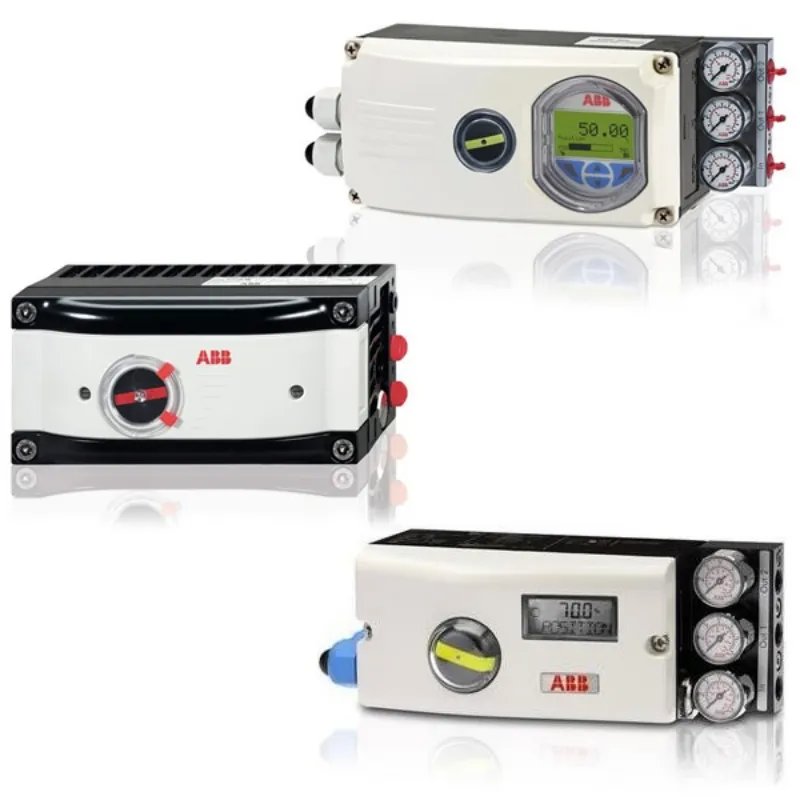

The ABB V18347 (model TZIDC - 120) is an electronically configurable positioner designed for mounting on pneumatic linear or rotary actuators. It features a compact design and modular construction, offering an excellent cost-performance ratio. With a microprocessor control, it can automatically determine and adapt control parameters to the final control element, achieving optimal control behavior and saving commissioning time. An I/P module with a pneumatic amplifier is used to control the pneumatic actuator, proportionally converting the electrical signal from the CPU into a pneumatic signal to adjust a 3/3-way valve, and continuously adjusting the air flow for the actuator. It has four pneumatic versions for single-acting or double-acting actuators, each with "fail-safe" or "fail-freeze" functions.

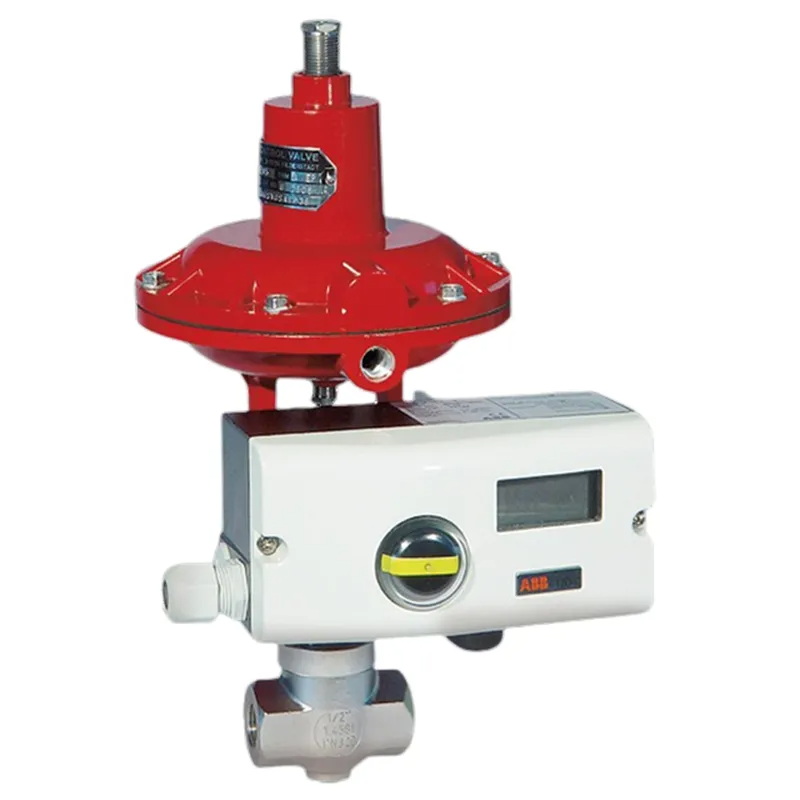

The TZIDC-120 is an electronically configurable positioner with communication capabilities designed for mounting to pneumatic linear or rotary actuators. It features a small and compact design, a modular construction, and an excellent cost-performance ratio.
Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.
Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.
Advantages
Time Savings:
Auto-tuning function eliminates manual parameter adjustment, reducing commissioning time by up to 70%.
Remote configuration via Fieldbus minimizes on-site visits.
Enhanced Process Control:
Adaptive control algorithms optimize valve response, reducing process variability.
Fail-safe modes (open/close/freeze) ensure safety during power loss or signal failure.
Cost Efficiency:
Low air consumption reduces operational costs.
Long service life and minimal maintenance requirements lower total cost of ownership.
Safety & Compliance:
Certified for hazardous areas (ATEX, IECEx).SIL 2/3 capable (when configured with safety systems).
Diagnostic Capabilities:
Real-time valve health monitoring (wear, leaks, friction).
FDT/DTM compatibility for remote troubleshooting.
Auto-tuning function eliminates manual parameter adjustment, reducing commissioning time by up to 70%.
Remote configuration via Fieldbus minimizes on-site visits.
Enhanced Process Control:
Adaptive control algorithms optimize valve response, reducing process variability.
Fail-safe modes (open/close/freeze) ensure safety during power loss or signal failure.
Cost Efficiency:
Low air consumption reduces operational costs.
Long service life and minimal maintenance requirements lower total cost of ownership.
Safety & Compliance:
Certified for hazardous areas (ATEX, IECEx).SIL 2/3 capable (when configured with safety systems).
Diagnostic Capabilities:
Real-time valve health monitoring (wear, leaks, friction).
FDT/DTM compatibility for remote troubleshooting.
Applications
Chemical & Petrochemical: Precise control of corrosive fluids, high-pressure processes.
Power Generation: Steam/gas turbine control, boiler feedwater regulation.
Oil & Gas: Onshore/offshore platforms, pipeline control, emergency shutdown systems.
Pharmaceutical & Food: Hygienic applications requiring accurate flow/pressure control.
Water & Wastewater: Treatment plant automation, pump control, and level regulation.
Power Generation: Steam/gas turbine control, boiler feedwater regulation.
Oil & Gas: Onshore/offshore platforms, pipeline control, emergency shutdown systems.
Pharmaceutical & Food: Hygienic applications requiring accurate flow/pressure control.
Water & Wastewater: Treatment plant automation, pump control, and level regulation.
Specification
Category | Specifications |
Model | V18347 (TZIDC-120) |
Communication | Foundation Fieldbus H1 |
Input Signal | Digital signal via Foundation Fieldbus |
Actuator Types | Single-acting and double-acting pneumatic actuators |
Valve Compatibility | Linear and rotary valves (e.g., globe, ball, butterfly) |
Stroke Range | Linear: 20–150 mm; Rotary: Up to 125° |
Fail-Safe Modes | Fail-open, fail-close, or fail-freeze (hold last position) |
Air Supply | 1.4–7 bar (20–100 psi) Air consumption: ≤ 0.03 kg/h Air capacity: ≥ 13.5 kg/h |
Mounting | Linear: DIN/IEC 534/NAMUR Rotary: VDI/VDE 3845 (NAMUR standard hardware) |
Connections | Electrical: 1/2-14 NPT or M20×1.5 Pneumatic: 1/4-18 NPT or G1/4 |
Environmental Rating | IP67 Temperature: -40°C to +85°C Vibration: Up to 10 g (10–80 Hz) or 2 g (300 Hz) |
Certifications | ATEX, FM/ (explosion-proof/intrinsically safe) Marine certification (optional) |
Display/Interface | 2-line LCD with 4-button control panel Remote configuration via Foundation Fieldbus |
Control Features | Auto-tuning, dead zone adjustment, control parameter adaptation, shear function for signal loss |
Diagnostics | FDT/DTM compliant for remote monitoring and troubleshooting |
Dimensions | Approx. 240 × 150 × 100 mm (housing) |
Weight | Approx. 2.5 kg (without accessories) |
Applications | Chemical, petrochemical, power generation, hazardous areas |
