Dwyer 2000 Series Magnehelic Differential Pressure Gauge
Product Description

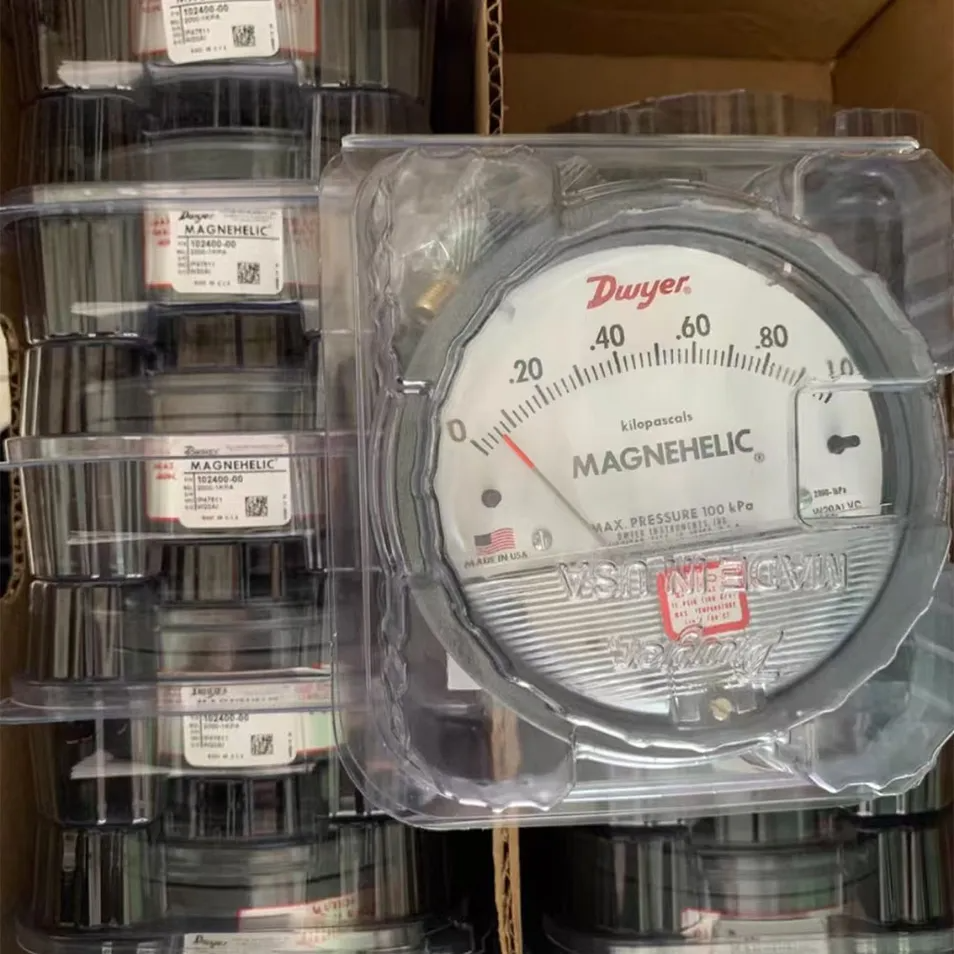

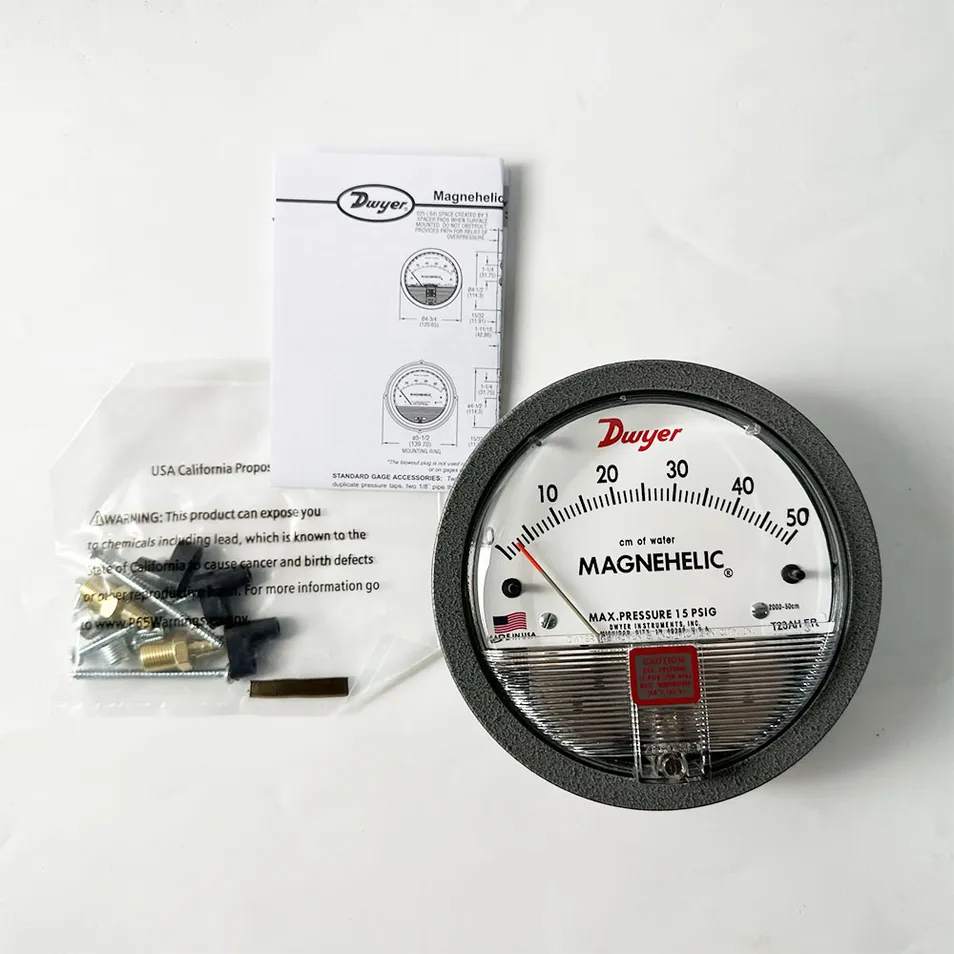

Dwyer 2000 Series Magnehelic Pressure Gauges
Low pressure Magnehelic gauges with frictionless movement to quickly indicate positive, vacuum or differential pressures.
Select the Series 2000 Magnehelic® Differential Pressure Gages for a versatile low differential pressure gauge with a wide choice of 81 models and 27 options to choose from. Using Dwyer's simple, frictionless Magnehelic® gage movement, it quickly indicates air or noncorrosive gas pressures - either positive, negative (vacuum) or differential.
The design resists shock, vibration, over-pressures and is weatherproof to IP67.
Select the –HA High Accuracy Magnehelic® gage option for an accuracy within 1% of full-scale. Also included with the –HA option at no extra cost are a mirrored scale overlay and a 6 point calibration certificate.
BENEFITS/FEATURES
• Easy to read gage through undistorted plastic face permits viewing from far away
• Patented design provides quick response to pressure changes means no delay in assessing critical situations
• Durable and rugged housing and high-quality components combine to provide long service life and minimized down-time
• High accuracy option is twice as accurate as the standard Magnehelic® gage
• Patented design provides quick response to pressure changes means no delay in assessing critical situations
• Durable and rugged housing and high-quality components combine to provide long service life and minimized down-time
• High accuracy option is twice as accurate as the standard Magnehelic® gage
• For use with air and compatible, non-combustible gases
• Die cast aluminum case and bezel, with acrylic cover
• Exterior finish is coated gray to withstand 168 hour salt spray corrosion test
• Pressure ranges to 30 psi (or equivalent)
• Die cast aluminum case and bezel, with acrylic cover
• Exterior finish is coated gray to withstand 168 hour salt spray corrosion test
• Pressure ranges to 30 psi (or equivalent)
APPLICATION
• Filter monitoring
• Air velocity with Dwyer® pitot tube
• Blower vacuum monitoring
• Fan pressure indication
• Duct, room or building pressures
• Clean room positive pressure indication
• Air velocity with Dwyer® pitot tube
• Blower vacuum monitoring
• Fan pressure indication
• Duct, room or building pressures
• Clean room positive pressure indication
Specification
Specifications | Details |
Model | Dwyer Series 2000 Differential Pressure Transmitter |
Pressure Ranges | - 0-0.25 inH2O to 0-200 inH2O (0-62.3 Pa to 0-49886 Pa) - Other ranges available upon request |
Output Signals | - 4-20 mA DC, 2-wire - 0-10 V DC, 3-wire (optional) |
Accuracy | ±0.25% full scale (BFSL), including linearity, hysteresis, and repeatability |
Temperature Effect | ±0.02% full scale/°F (±0.036% full scale/°C) from 32-140°F (0-60°C) |
Response Time | < 500 ms (for 90% of step change) |
Power Supply | - 4-20 mA: 10-30 V DC - 0-10 V: 12-30 V DC |
Operating Temperature | 32-140°F (0-60°C) ambient; Media temperature same as ambient |
Storage Temperature | -40-185°F (-40-85°C) |
Overpressure Limit | 50 psi (3.4 bar) maximum without damage |
Enclosure Rating | NEMA 4X (IP65) polycarbonate housing |
Process Connections | 1/8" FNPT (standard); Optional barbed fittings for tubing |
Electrical Connections | Screw terminals (18-24 AWG) |
Mounting | Wall, panel, or duct mount (with optional brackets) |
Weight | Approximately 1 lb (0.45 kg) |
Approvals | CE compliant; UL/cUL listed (optional) |
