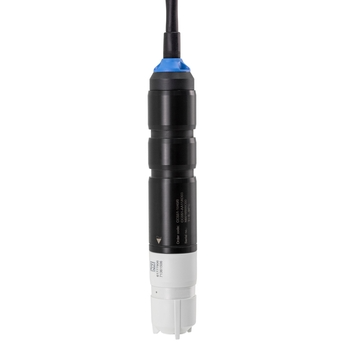

Analog free chlorine sensor CCS51

Sensor for drinking water, pool and process water as well as utilities in all industries

• Measuring principle

  Free chlorine

• Application

  Drinking water - to ensure reliable disinfection
  Process water - wide range of application due to large measuring range
  Food - to secure absence/presence of free chlorine
  Pool water -efficient dosing thanks to precise measurement

• Characteristic

  Amperometric measurement of dissolved free chlorine

• Measuring range

  Trace: 0 to 5 mg/l HOCl
  Standard: 0 to 20 mg/l HOCl

• Measuring method

  - Closed, membrane covered measuring cell
  - Reduction of free chlorine at the cathode

• Design

  Closed amperometric 2-electrode measuring cell with PVDF membrane

• Material

  Sensor shaft: POM
  Membrane: PVDF
  Membrane cap: PVDF

• Dimension

  Diameter: 25 mm (0.98 in)
  Length: 161 mm (6.34 in)

• Process temperature

  +0 to 55 °C (32 to 130°F), non-freezing

• Process pressure

  1 bar (14.5 psi)

• Temperature sensor

  10k NTC

• Connection

  analog with fixed cable
