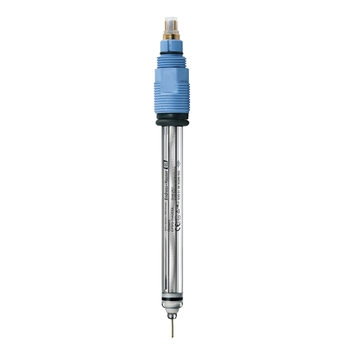

Orbisint CPS12 - Analog ORP sensor with dirt-repellent PTFE diaghragm

Analog ORP sensor
Orbisint CPS12

Glass electrode for standard applications


  • Measuring principle

    Sensor ORP / Redox

  • Application

    Standard applications in process and environment. Long-term monitoring, processes with little changes.

  • Characteristic

    Very robust, heavy-duty / high pressure, integrated potential matching.

  • Measuring range

    -1500 mV to +1500 mV

  • Measuring principle

    Gel compact electrode with teflon diaphragm and double gel reference
    Measuring part as gold-pin or platinum-ring.

  • Design

    All shaft lengths with temperature sensor
    Advanced gel technology

  • Material

    Glass electrode with PTFE diaphragm and gold pin or platinum ring.

  • Dimension

    Diameter: 12 mm (0.46 inch)
    Shaft lengths: 120, 225, 360 and 425 mm
    (4.68, 8.77, 14.04 and 16,57 inch)

  • Process temperature

    max. 135°C (274°F)

  • Process pressure

    max. 16bar (230psi)

  • Ex certification

    Simple operational device, no certification necessary.

  • Connection

    TOP68 connection head

  • Ingress protection

    IP68

  • Certificates, declarations and approvals

    Biocompatibility acc. ISO 10993-5 and USP (current version).
    TÜV certificate for pressure resistance with min. triple overpressure safety.
