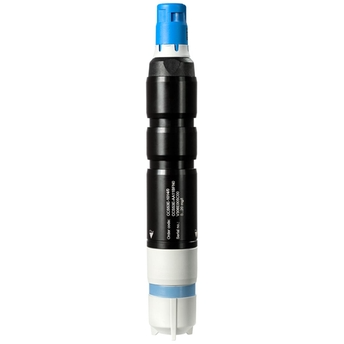

Digital total chlorine sensor
Memosens CCS53E

Memosens disinfection sensor for wastewater and utilities in all industries

• Measuring principle

  Total chlorine

• Application

  Wastewater treatment plants, disinfection monitoring and control in wastewater outlet, reuse of outlet water
  utilities of all industries
  drinkingwater to regulate disinfection
  all disinfection measuring points
  swimming pool with efficient disinfection
  Food and Beverage, cleaning water or zero chlorine applications for reverse osmosis,

• Characteristic

  Amperometric measurement of total chlorine

• Measuring range

  0 to 5 mg/l total chlorine or
  0 to 20 mg/l total chlorine

• Measuring method

  Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
  All components are reduced at the working electrode
  Almost pH independent

• Design

  Closed amperometric 2-electrode measuring cell with PET membrane

• Material

  Sensor shaft: POM
  Membrane: PET/PVDF
  Mebrane cap: PVDF

• Dimension

  Diameter: 25 mm (0.98 in)
  Length: 161 mm (6.34 in)

• Process temperature

  0 to 55 °C , non-freezing
  (32 to 130 °F)

• Process pressure

  1 bar relative (14,5 psi relativ)
  Max. 2 bar (max. 29 psi)

• Temperature sensor

  10k NTC integrated (Memosens)

• Connection

  Inductive, digital connection head with Memosens 2.0
