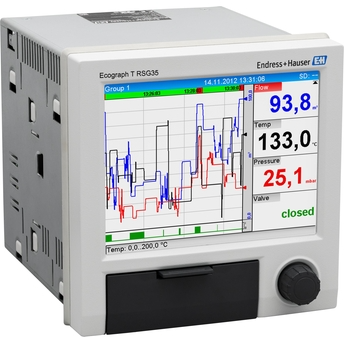

Ecograph T RSG35 - Universal Graphic Data Manager

Ecograph T RSG35 data manager

Graphic data manager with up to 12 analog and 6 digital inputs


  • Measuring principle

    Data manager

  • Measuring principle

    Universal Graphic Data Manager

  • Function

    Secure data recording made easy - Monitor, visualize, record and communicate process values - every measurement value counts!

  • Input

    12 analog (max) (U, I, TC, RTD, frequency, pulse)
    6 digital (max)

  • Output

    6 relays (max)
    1 transmitter power supply

  • Interface

    RS232/485 (optional)
    Ethernet
    USB
    Modbus RTU/TCP Slave (optional)

  • Storage/Recording

    internal memory
    SD card
    USB flash drive

  • Display

    TFT 5.7" colour graphic display

  • Housing

    panel mounting
    desktop housing
    field housing

  • Certificates

    UL recognized

  • Software package

    mathematics
