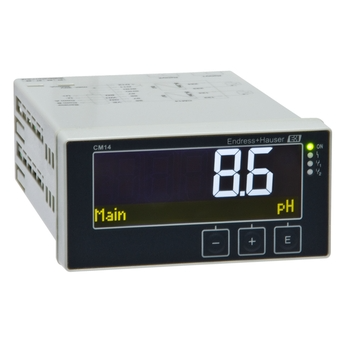

1-channel transmitter
Liquiline CM14

Compact panel device for the food, power, water and wastewater industries

• Measuring principle

  Potentiometric

• Application

  Water, waste water

• Characteristic

  4-wire transmitter with a two-line display

• Measuring principle

  pH/ORP transmitter for digital Memosens sensors.

• Design

  panel housing (48x96 mm)

• Material

  panel housing, polycarbonate
  front membrane polyester

• Dimension

  48 mm x 96 mm x 152 mm(built in depth)
  3.74x3.74x5.98 inch (built in depth)

• Temperature sensor

  Display and current output

• Ex certification

  no

• Ingress protection

  Front IP65 , NEMA 4X, Body IP20

• Input

  One-channel-transmitter

• Output / communication

  2 x 0/4 to 20 mA
  2 x Relay

• Certificates, declarations and approvals

  CE
