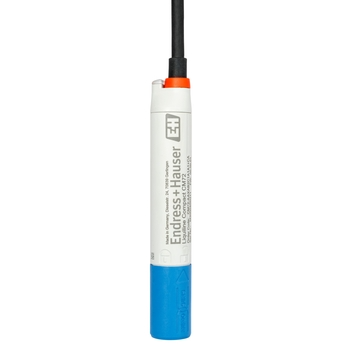

1-channel transmitter
Liquiline Compact CM72

Single-parameter field device for hazardous and non-hazardous applications in all industries

• Measuring principle

  Potentiometric

• Application

  All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector

• Installation

  Connection of digital sensors with Memosens-Protocol

• Characteristic

  Liquiline CM72 is a fixed configured two-wire transmitter for all areas of process engineering

• Measuring range

  pH Sensor: 0 to 14 pH

• Design

  Peek housing

• Material

  Housing, cover: Peek 151
  Strain relief: EPDM
  Axial ring: Peek 450 G

• Dimension

  Diameter: 18.95 mm (0.75 inch)
  Length: 114.7 mm (4.52 inch)

• Connection

  Connection of digital sensors with Memosens-Protocol

• Ingress protection

  IP67, IP68, NEMA Type 6

• Input

  One channel transmitter

• Output / communication

  4 to 20 mA

• Certificates, declarations and approvals

  CE, CSA C/US GP
