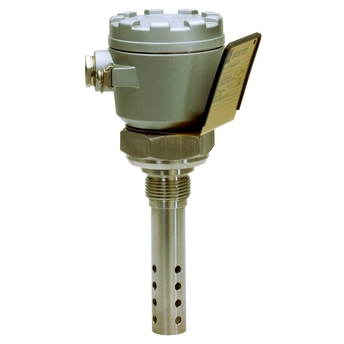

Analog conductivity sensor
Condumax CLS12

Conductive conductivity sensor for high temperature applications in the power & energy industry

• Measuring principle

  Conductive

• Application

  Power plant, condensate, boiler feed water

• Characteristic

  2-electrode conductivity cell for high temperature applications in pure and ultrapure water

• Measuring range

  k=0.01: 0 to 20 µS/cm
  k= 0.1: 0 to 200 µS/cm

• Measuring principle

  Conductive conductivity cell with polished stainless steel electrodes

• Design

  Large coaxially arranged electrodes for a fast media flow through the cell

• Material

  Electodes: stainless steel 1.4571
  Sealing: PEEK / EPDM

• Dimension

  Electrode diameter: 25 mm (0.98 inch)
  Immersion depth: 50 to 115 mm (1.97 to 4.53 inch)

• Process temperature

  -30 to 160 °C (-22 to 320 °F)

• Process pressure

  Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber
  Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber

• Temperature sensor

  Integrated Pt100

• Ex certification

  ATEX

• Connection

  Process connection : G1" and NPT1" Fixed cable on transmitter

• Ingress protection

  IP67

• Certificates, declarations and approvals

  Calibration certification with cellconstant
