Analog conductivity sensor

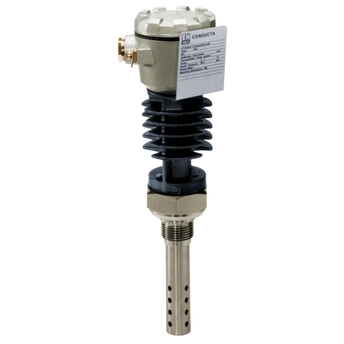

Condumax CLS13

Conductive conductivity sensor for high temperature applications in the power & energy industry

• Measuring principle

  Conductive

• Application

  Process, power plant

• Characteristic

  2-electrode conductivity cell for high temperature applications.

• Measuring range

  k=0,01: 0-20,0 µS/cm
  k=0,1: 0-200,0 µS/cm

• Measuring principle

  Coaxially arranged electrodes for high temperature applications

• Design

  2-electrode conductivity cell with coaxially arranged electrodes
  Connection head and cooling body made of casting aluminium with fixed cable connection PG16

• Material

  Electrode: 1.4571
  Sealing: Kalrez, ceramic

• Dimension

  Electrode diameter: 25 mm (0.984 inch)
  Immersion depth: 50 to 115 mm (1.97 to 4.48 inch)
  Weight: 3kg

• Process temperature

  max. 250 °C (482 °F)

• Process pressure

  max. 40 bar (580 psi)

• Temperature sensor

  Integrated Pt100

• Ex certification

  ATEX

• Connection

  Process connection: G1"

• Ingress protection

  IP67

• Certificates, declarations and approvals

  Calibration certificate with cellconstant
