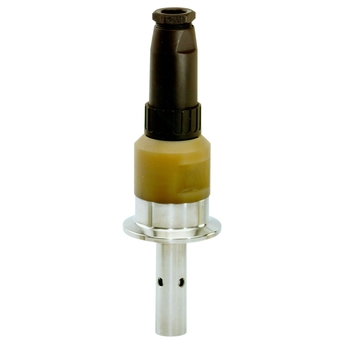

Analog conductivity sensor
Condumax CLS15

Conductive conductivity sensor for standard applications in pure and ultrapure water

• Measuring principle

  Conductive

• Application

  Water, power plant, process

• Characteristic

  2-electrode conductivity cell for pure and ultrapure water

• Measuring range

  k=0,01: 0-20 µS/cm
  k=0,1: 0-200 µS/cm

• Measuring principle

  Conductive conductivity cell with polished stainless steel electrodes

• Design

  2-electrode conductivity sensor with coaxially arranged electrodes, electropolished

• Material

  Electrode: 1.4435
  Electrode shaft: PES

• Dimension

  Electrode diameter: 16 mm
  (0.62 inch)
  Electrode length: appr. 55 mm
  (2.14 inch)

• Process temperature

  max. 130°C (150°C / 30 min.)
  (max. 266°F (302°F/30 min.)

• Process pressure

  max. 12 bar at 20°C
  (174 psi at 68°F)

• Temperature sensor

  Pt100

• Ex certification

  ATEX

• Connection

  Process connection: 1/2" NPT, 3/4" NPT, 1 1/2" Clamp
  cable : 4-pole SXP connector or fixed cable

• Ingress protection

  IP67

• Certificates, declarations and approvals

  Calibration certification of the cell constante.
