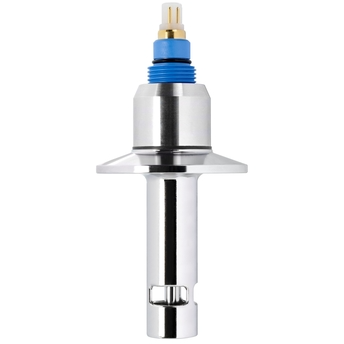

Analog conductivity sensor
Condumax CLS16B

Contacting conductivity sensor for hygienic applications in the food & beverage and life sciences industries

• Measuring principle

  Conductive

• Application

  Pharmaceuticals, pure and ultrapure water

• Characteristic

  Hygienic 2-electrode conductivity sensor

• Measuring range

  k=0,1: 0,04µS/cm - 500µS/cm

• Measuring principle

  Conductive conductivity cell

• Design

  Hygienic 2-electrode conductivity sensor with coaxially arranged electrodes, electropolished stainless steel and FDA sealing material; sterilizable

• Material

  In contact with medium
  Sensor depending on order execution:
  Electropolished, stainless steel 1.4435 (AISI 316L)
  PEEK
  Sealing depending on order execution:
  Form seal ISOLAST (FFKM)
  Form seal EPDM

• Dimension

  Electrode diameter: 17 mm
  (0.66 inch)
  Electrode length: 54 mm
  ( 2.10 inch)

• Process temperature

  Max. 120°C (150°C/30 min)
  max. 248°F (302°F/30 min.)

• Process pressure

  max. 12 bar at 20°C
  max.174 psi at 68°F

• Temperature sensor

  Integrated Pt100 or Pt1000

• Ex certification

  ATEX

• Connection

  Process connection: Varivent, Neumo, Clamp
  Cable: TOP68 connector or fixed cable

• Ingress protection

  IP68

• Certificates, declarations and approvals

  Inspection certificate 3.1, EN10204
  Surface roughness test ISO4287/Ra (≤ 0,38 µm)
  Conformity to cGMP derived requirements
  ASME BPE
  US Food Contact Materials FDA CFR 21
  EU Food Contact Materials (EG) 1935/2004
  CN Food Contact Materials GB 4806
  EHEDG EL Class I
