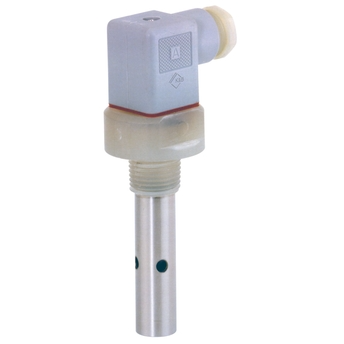

Analog conductivity sensor
Condumax CLS19

Conductive conductivity sensor for simple standard applications in pure and ultrapure water

• Measuring principle

  Conductive

• Application

  Pure and ultrapure water

• Characteristic

  2-electrode conductivity cell for pure water applications.

• Measuring range

  k=0,01: 0-20 µS/cm
  k=0,1: 0-200 µS/cm

• Measuring principle

  Conductive conductivity cell.

• Design

  2-electrode conductivity cell with coaxially arranged electrodes

• Material

  Cell shaft: PES
  Electrode: Stainless steel 1.4571

• Dimension

  Electrode diameter: 16 mm
  (0.62 inch)

• Process temperature

  max. 60°C
  max. 140°F

• Process pressure

  max. 6 bar at 20°C
  (max.87 psi at 68°F)

• Temperature sensor

  Optional with integrated Pt100

• Connection

  Process connection: NPT 1/2"
  cable:4-pole DIN-connector with Pg9

• Ingress protection

  IP65

• Certificates, declarations and approvals

  Quality certification
