Analog conductivity sensor

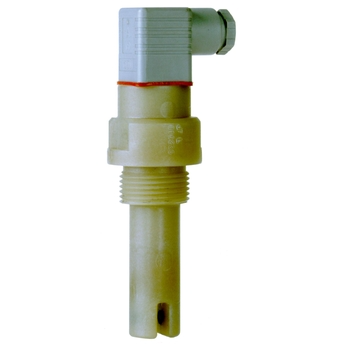

Condumax CLS21

Conductive conductivity sensor for medium to high measuring ranges

• Measuring principle

  Conductive

• Application

  Water, waste water, process, media separation, industrial water.

• Characteristic

  2-electrode system for application in the middle application range.

• Measuring range

  k=1: 10,0 µS/cm - 20,0 mS/cm

• Measuring principle

  Conductive conductivity cell with graphite electrodes for applications in the middle range.

• Design

  2-electrode system with parallel arranged electrodes

• Material

  Cell shaft: PES
  Electrodes: graphite

• Dimension

  Diameter: 24 mm
  (0.936 inch)
  Length: 61 mm
  2.37 inch)

• Process temperature

  max. 135°C
  (max. 275°F)

• Process pressure

  max. 16 bar at 20°С
  (max. 232psi at 68°F)

• Temperature sensor

  Optional with integrated Pt100 or PTC temperature sensor.

• Ex certification

  ATEX

• Connection

  Process connection: DN25, DN40, G1", Cable: 4-pole connector with thread Pg9 or fixed cable.

• Ingress protection

  IP65 (connector)IP67 (fixed cable)
