Analog conductivity sensor

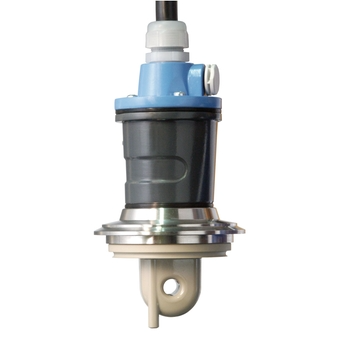

Indumax CLS54

Toroidal conductivity sensor for hygienic and sterile applications

• Measuring principle

  Inductive

• Application

  Food, beverage and pharmaceutical industries and in biotechnology.

• Characteristic

  Specifically intended for use in hygienic applications and especially suitable for following applications:
  Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring.

• Measuring range

  100 µS/cm - 2000 mS/cm Cell constant k: 6,3 1/cm

• Measuring principle

  Inductive conductivity measurement

• Design

  Hygienic design with food-grade virgin PEEK body in jointless and creviceless design including all hygienic certifications.

• Material

  In contact with medium: Virgin PEEK
  Surface roughness: Ra<0.9µm

• Process temperature

  Process temperature: -10°C - +125°C
  (14°F - 257°F)
  Sterilisation: 150°C/5 bar (max. 60 min.)
  (302°F / 72.5 psi)

• Process pressure

  12 bar(174 psi)/20°C(68°F)
  8 bar(116 psi)/125°C(257°F)

• Temperature sensor

  Pt1000 (class A)with a temperature response time T90 < 27s.

• Ex certification

  ATEX II G EEx ia IIc T3/T4/T6
  FM/CSA IS NI CL.I,II,III,Div.1&2 group A-G in connection with the transmitter CM42.

• Connection

  Dairy pipe, Aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50.

• Ingress protection

  IP68/NEMA6P

• Certificates, declarations and approvals

  Surface roughness test ISO4287/Ra (≤ 0,8 µm)
  Bio reactivity test USP Class VI
  US Food Contact Materials FDA CFR 21
  EU Food Contact Materials (EG) 1935/2004
  CN Food Contact Materials GB 4806
  EHEDG EL Class I, 3-A
