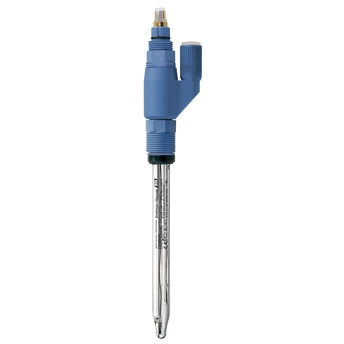

Analog pH sensor
Ceraliquid CPS41

Glass electrode for applications with fast-changing medium compositions or low conductivity

• Measuring principle

  Potentiometric

• Application

  - special applications with high requirements with regard to accuracy and speed - rapid changing composition of media, highly clogging media, low conductivities.

• Characteristic

  - for lowest conductivity - diaphragm with defined electrolyte flow - can be subject to pressure to prevent clogging - gel-free refillable electrolyte - fast response time

• Measuring range

  pH 0-14

• Measuring principle

  liquid-KCl with ceramic diaphragm

• Design

  - all shaft lengths with temperature sensor.

• Material

  glass / ceramic

• Dimension

  Diameter: 12mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm
  (4.68, 8.77, 14.04 and 16,57 inch)

• Process temperature

  max. 135°C (274°F)

• Process pressure

  max. 10bar (145psi)

• Temperature sensor

  Optional with integrated Pt100

• Ex certification

  Simple operational equipment, no certification necessary.

• Connection

  TOP68 connection head

• Ingress protection

  IP 68

• Certificates, declarations and approvals

  3A
