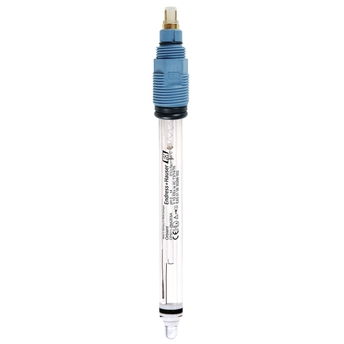

Analog pH sensor
Orbisint CPS11

Glass electrode for standard applications

• Measuring principle

  Potentiometric

• Application

  Standard applications in process and the environment. Long-term monitoring, processes with little change.

• Characteristic

  Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.

• Measuring range

  pH 0-14

• Measuring principle

  Gel compact electrode with PTFE ring-diaphragm.

• Design

  - all shaft lengths with temperature sensor
  - advanced gel technology.
  - With dirt-repellent PTFE diaphragm.

• Material

  Glass / PTFE

• Dimension

  Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm
  (4.68, 8.77, 14.04 and 16,57 inch)

• Process temperature

  max. 135°C (274°F)

• Process pressure

  max. 16 bar (230 psi)

• Temperature sensor

  optional with integrated Pt100 or Pt1000

• Ex certification

  Simple operational equipment, no certification necessary.

• Connection

  TOP68 connection head

• Ingress protection

  IP 68

• Certificates, declarations and approvals

  Biocompatibility validated acc. to ISO 10993-5 USP (current version).
  TÜV certificate for pressure resistance 16 bar, min. triple overpressure safety.
