Conductivity compact device

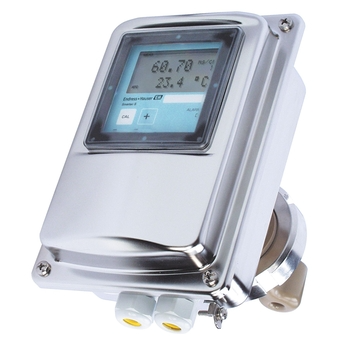

Smartec CLD132

Inductive conductivity measuring system for applications with fast temperature changes

• Measuring principle

  Inductive

• Application

  - Alkali/acid concentration control - phase separation in pipe systems - monitoring and control of bottle cleaning systems - product monitoring in breweries, dairies and the beverage industry - CIP system control

• Characteristic

  Compact measuring system for an inductive conductivity measurement special made for media with a high conductivity.

• Measuring range

  100 µS/cm - 2000 mS/cm

• Measuring principle

  Inductive measuring system including transmitter and sensor.

• Design

  Compact transmitter made of stainless steel with an inductive sensor made of PEEK in a separate or compact version.

• Material

  Housing: Stainless steel 1.4301 polished Window: Polycarbonate Sensor: PEEK, stainless steel 1.4435 Sealing: Chemraz

• Process temperature

  max. 140°C (max. 30 min.)
  284°F (max. 30 min.)

• Process pressure

  max. 12 bar (90°C)
  (174 psi(194°F))

• Temperature sensor

  Pt100

• Ex certification

  No

• Ingress protection

  IP67

• Input

  One-channel transmitter incl. temperature.

• Output / communication

  Conductivity and temperature 0/4-20 mA, HART, Profibus.
