Conductivity compact device

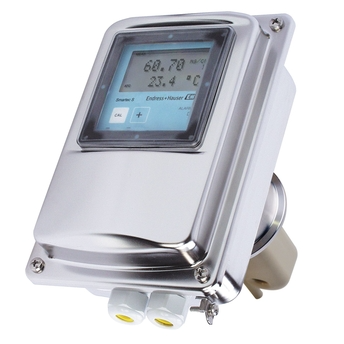

Smartec CLD134

Toroidal conductivity measuring system for hygienic and sterile applications

• Measuring principle

  Inductive

• Application

  Food, beverage, dairies, breweries and pharmaceutical industries, biotechnology

• Characteristic

  Specifically intended for use in hygienic applications and especially suitable for following applications:
  Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring

• Measuring range

  100 µS/cm to 2000 mS/cm
  Cell constant k : 6.3 1/cm

• Measuring principle

  Inductive conductivity measurement

• Design

  Hygienic design with FDA certified virgin PEEK body including all hygienic certifications

• Material

  In contact with medium: Virgin PEEK

• Process temperature

  Max. 125 °C (max. 257 °F)
  For sterilization: up to 150 °C for max. 60 min
  (up to 302 °F for max. 60 min)

• Process pressure

  12 bar abs up to 90 °C
  (174 psi abs up to 194 °F)

• Temperature sensor

  Pt 1000

• Connection

  Dairy pipe, aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50

• Ingress protection

  IP67

• Output / communication

  Conductivity, concentration and temperature. 0/4 to 20 mA, HART, Profibus

• Certificates, declarations and approvals

  nspection certificate 3.1, EN10204
  Surface roughness test ISO4287/Ra (≤ 0,8 µm)
  Bio reactivity test USP Class VI
  US Food Contact Materials FDA CFR 21
  EU Food Contact Materials (EG) 1935/2004
  CN Food Contact Materials GB 4806
  EHEDG EL Class I, 3-A
