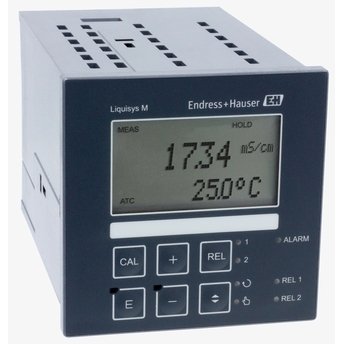

Conductivity transmitter
Liquisys CLM223

Compact panel device for all industries

• Measuring principle

  Conductive

• Application

  Water, waste water, process

• Characteristic

  4-wire transmitter with a two-line display.

• Design

  Panel-mounted transmitter for conductivity

• Dimension

  96x96 mm, built-in-depth: 146 mm

• Temperature sensor

  Display and current output

• Ex certification

  No

• Ingress protection

  IP54

• Input

  1-channel transmitter

• Output / communication

  0/4-20 mA, Hart, Profibus.

• Certificates, declarations and approvals

  CSA Gen. Purpose
