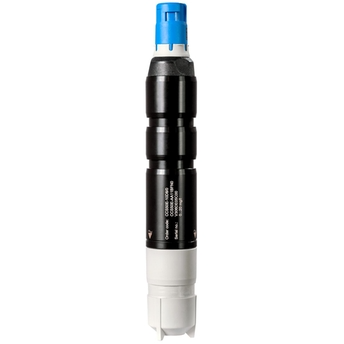

Digital chlorine dioxide sensor
Memosens CCS50E

Memosens sensor for drinking water, process water and multi-industry utilities

• Measuring principle

  Chlorine dioxide

• Application

  Adequate disinfection in drinking water, preventing of pathogen formation in cooling water systems, water used to wash pre-packaged vegetables, ensures the absence of chlorine dioxide in beverage systems

• Characteristic

  Amperometric measurement of dissolved chlorine dioxide

• Measuring range

  Trace: 0 to 5 mg/l ClO2
  Standard: 0 to 20 mg/l ClO2
  High: 0 to 200 mg/l ClO2

• Measuring principle

  Closed, membrane covered measuring cell
  Reduction of chlordioxide (ClO2) to chloride at the cathode with appr. 120mV

• Design

  Closed amperometric 2-electrode measuring cell with PVDF membrane

• Material

  Sensor shaft: POM
  Membrane: PVDF
  Membrane cap: PVDF

• Dimension

  Diameter: 25 mm (0.98 inch)
  Length: 161 mm (6.34 inch)

• Process temperature

  0 to 55 °C , non-freezing
  (32 to 130 °F)

• Process pressure

  Max. 2 bar abs
  (Max. 29 psi abs)

• Temperature sensor

  10k NTC integrated (Memosens)

• Connection

  Inductive, digital connection head with Memosens
