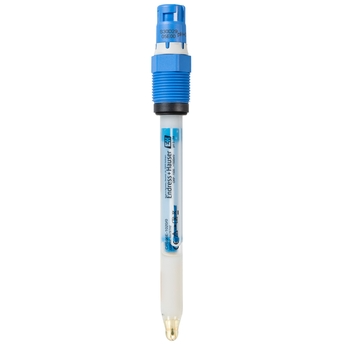

Digital combined pH/ORP sensor Memosens CPS96E

Memosens 2.0 electrode for heavily polluted media in chemical processes, paper or paint production

• Measuring principle

  Potentiometric

• Application

  pH / ORP sensor for heavily contaminated media
  and suspended solids
  • Chemical processes
  • Pulp and paper industry
  • Flue gas cleaning
  • Contaminated media:
  • Solids
  • Emulsions
  • Precipitation reactions

• Characteristic

  Gel pH/ORP electrode with open aperture and double gel reference with ion trap for chemical applications

• Measuring range

  ORP: –1 500 to 1 500 mV
  pH: 0 to 14

• Measuring principle

  Pt-disc as additional ORP element
  rH measurement and control of the reference impedance

• Design

  All shaft lengths with temperature sensor
  Advanced gel technology
  Hydrolysis stable gel

• Material

  Sensor shaft: Glass to suit process
  pH membrane glass: Type B
  Metal lead: Ag/AgCl
  ORP measuring element: Platinum
  O-ring: FKM
  Process coupling: PPS fiber-glass reinforced
  Nameplate: Ceramic metal oxide

• Dimension

  Diameter: 12 mm (0.46 inch)
  Shaft lengths: 120, 225, 360 and 425 mm
  (4.68, 8.77, 14.04 and 16.57 inch)

• Process temperature

  0 to 110 °C (32 to 230 °F)

• Process pressure

  0.8 to 14 bar (11.6 to 203 psi) absolute

• Temperature sensor

  NTC 30k

• Ex certification

  With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
  hazardous areas Zone 0, Zone 1 and Zone 2

• Connection

  Inductive, digital connection head with Memosens 2.0 technology

• Ingress protection

  IP68
