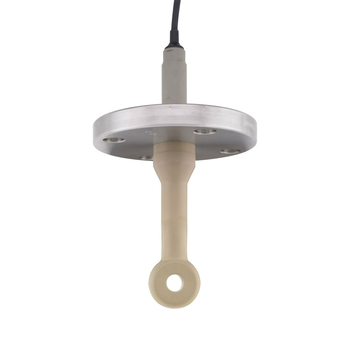

Digital conductivity sensor
Indumax CLS50D

Memosens toroidal conductivity sensor for chemical applications

• Measuring principle

  Inductive

• Application

  Chemical industry, process

• Characteristic

  Analog or digital, inductive conductivity sensor for standard, Ex and
  high-temperature applications

• Measuring range

  2µS/cm to 2000 mS/cm

• Measuring principle

  Inductive conductivity measurement

• Design

  No direct contact with the media because of the sensor coating made of highly resistant material

• Material

  PEEK or PFA

• Dimension

  Electrode:
  Outside diameter: 47.5 mm (1.87 inch)
  Inside diameter: 15 mm (0.59 inch)
  Inside diameter (PEEK version): 15.5 mm (0.61 inch)

• Process temperature

  PEEK: max. 125°C (max. 260 °F)
  PFA: max. 110°C (max. 230 °F)

• Process pressure

  PEEK: max. 21 bar (max. 304.5 psi)
  PFA: max. 17 bar (max. 246.5 psi)

• Temperature sensor

  Integrated Pt1000

• Ex certification

  ATEX, IECEx, NEPSI, FM, CSA, TIIS, EAC

• Connection

  Process connection: NPT1", DN50, AINSI, JIScable: fixed cable connection

• Ingress protection

  IP 68 / NEMA type 6

• Certificates, declarations and approvals

  Calibration certification of the cell constant
