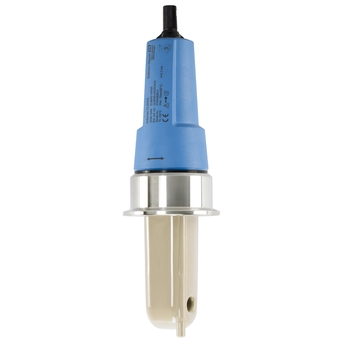

Digital conductivity sensor
Indumax CLS54D

Memosens toroidal conductivity sensor for hygienic and sterile applications

• Measuring principle

  Inductive

• Application

  Food, beverage and pharmaceutical industries, biotechnology, dairies, breweries

• Characteristic

  Specifically intended for use in hygienic applications and especially suitable for following applications:
  Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring

• Measuring range

  100 µS/cm to 2000 mS/cm
  Cell constant k: 6.3 1/cm

• Measuring principle

  Inductive conductivity measurement

• Design

  Hygienic design with food-grade virgin PEEK body in jointless and creviceless design including all hygienic certifications

• Material

  In contact with medium: virgin PEEK

• Process temperature

  -10 °C to 125 °C (14 °F to 257 °F)
  Sterilization: 150 °C at 6 bar abs for max. 60 min
  (302 °F at 87 psi abs for max. 60 min)

• Process pressure

  13 bar abs up to 90 °C (188.5 psi abs up to 194 °F)
  9 bar at 125 °C (130.5 psi abs at 257 °F)

• Temperature sensor

  Pt1000 (Class A according to IEC 60751)

• Connection

  Dairy pipe, Aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50

• Ingress protection

  IP68 / NEMA type 6P

• Certificates, declarations and approvals

  Surface roughness test ISO4287/Ra (≤ 0,8 µm)
  Bio reactivity test USP Class VI
  US Food Contact Materials FDA CFR 21
  EU Food Contact Materials (EG) 1935/2004
  CN Food Contact Materials GB 4806
  EHEDG EL Class I, 3-A
