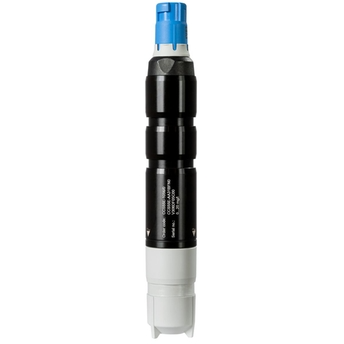

Digital free bromine sensor
Memosens CCS55E

Memosens sensor for seawater applications and process water

• Measuring principle

  Free bromine

• Application

  Seawater - to ensure reliable disinfection
  Process water - wide range of application due to large measuring range
  Pool water - efficient dosing thanks to precise measurement

• Characteristic

  Amperometric measurement of dissolved free bromine

• Measuring range

  Trace: 0 ... 5 mg/l HOBr
  Standard: 0 ... 20 mg/l HOBr
  High: 0 ... 200 mg/l HOBr

• Measuring principle

  Closed, membrane covered measuring cell
  Reduction of free bromine at the working electrode

• Design

  Closed amperometric 2-electrode measuring cell with PET membrane

• Material

  Sensor shaft: POM
  Membrane: PET
  Membrane cap: PVDF

• Dimension

  Diameter: 25 mm (0.98 in)
  Length: 161 mm (6.34 in)

• Process temperature

  +0...55 °C (32 ... 130°F), non-freezing

• Process pressure

  Max. 1 bar (max. 14.5 psi)

• Temperature sensor

  10k NTC integrated (Memosens)

• Connection

  Inductive, digital connection head with Memosens technology
