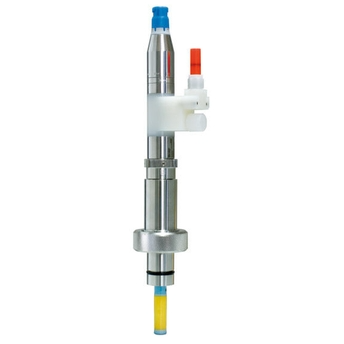

Digital non-glass pH sensor
Ceramax CPS341D

Memosens enamel electrode for food and life sciences industries

• Measuring principle

  Potentiometric

• Application

  Food production, beverage production, quality control, pharmaceutical industry, biotechnology

• Characteristic

  Electrode with pH sensitive enamel and digital Memosens technology
  Meets highest demands of measuring accuracy, pressure, temperature, sterility and durability

• Measuring range

  0 to 10 pH (linear range)
  -2 to 14 pH (application)

• Measuring principle

  Ground diaphragm, liquid KCl-filled reference

• Design

  Only one shaft length, different hygienic process connectors
  Integrated temperature sensor

• Material

  pH sensitive enamel on a steel carrier

• Dimension

  Diameter: 12 mm (0.47 inch)
  Shaft length: 120 mm (4.72 inch)

• Process temperature

  0 to 140 °C
  (32 to 280 °F)

• Process pressure

  0.8 to 7 bar abs
  (11.6 to 101.5 psi)

• Temperature sensor

  NTC 30KΩ

• Connection

  Contactless, inductive, digital connection head with Memosens technology
