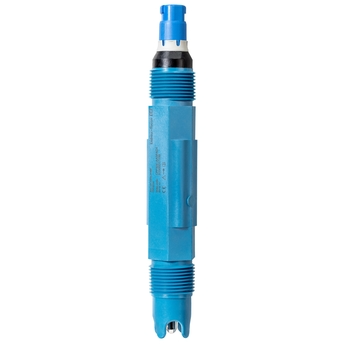

Digital ORP sensor
Memosens CPF82E

Memosens 2.0 compact electrode for wastewater, mining, minerals and metal industries

• Measuring principle

  Sensor ORP / Redox

• Application

  Flotation, leaching, neutralization, outlet monitoring

• Characteristic

  Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4"

• Measuring range

  -1500mV to +1500mV

• Measuring principle

  Gel-compact electrode with double chamber reference system, potassium nitrate bridge electrolyte and PTFE-diaphragm, platinum ring

• Design

  Compact electrode in PPS housing with NPT3/4" process connection

• Material

  Housing: PPS
  ORP electrode: platinum ring
  Double chamber reference system: KNO3 and KCl/AgCl

• Dimension

  Diameter: 22 mm (0.87 inch)
  Length: 150 mm (5.91 inch)

• Process temperature

  0 to 80 °C (32 to 170 °F)

• Process pressure

  1 to 10 bar abs at 80 °C
  (15 to 145 psi abs at 176 °F)

• Temperature sensor

  NTC

• Ex certification

  (optional) FM IS NI Cl. I Div.1&2, Groups A-D

• Connection

  Process connection: NPT 3/4"
  Memosens plug

• Ingress protection

  IP 68
