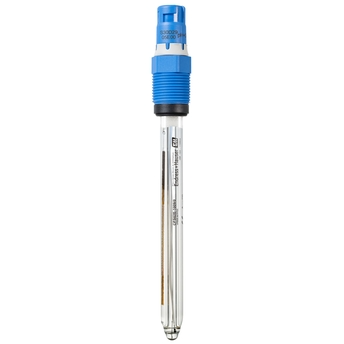

Digital ORP sensor
Memosens CPS62E

Memosens 2.0 ORP electrode for the chemical and life sciences industries

• Measuring principle

  Sensor ORP / Redox

• Application

  Hygiene and sterile applications (sterilizable, autoclavable):
  • Fermenter
  • Biotechnology
  • Pharma

• Characteristic

  Digital ORP electrode for hygienic production processes with ion trap
  for long-term stable reference

• Measuring range

  –1 500 to 1 500 mV

• Measuring principle

  Gel compact electrode with ceramic junction and ion trap
  Measuring element platinum cap

• Design

  All shaft lengths with temperature sensor
  Advanced gel technology

• Material

  Sensor shaft: Glass to suit process
  Metal lead: Ag/AgCl
  Open aperture: Ceramic junction,
  zirconium dioxide
  ORP measuring element: Platinum
  O-ring: FKM
  Process coupling: PPS fiber-glass reinforced
  Nameplate: Ceramic metal oxide

• Dimension

  Diameter: 12 mm (0.46 inch)
  Shaft lengths: 120, 225 and 360 mm
  (4.68, 8.77 and 14.04 inch)

• Process temperature

  0 to 100 °C (32 to 212 °F)
  0 to 140 °C (32 to 284 °F) (140 °C (284 °F) or sterilization only)

• Process pressure

  0.8 to 14 bar (11.6 to 203.1 psi) absolute

• Temperature sensor

  NTC 30k

• Ex certification

  With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
  hazardous areas Zone 0, Zone 1 and Zone 2

• Connection

  Inductive, digital connection head with Memosens 2.0 technology

• Ingress protection

  IP68
