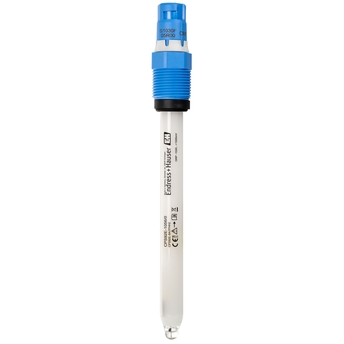

Digital ORP sensor
Memosens CPS92E

Memosens 2.0 glass sensor for heavily polluted media in chemical industry, paper, pigment production

• Measuring principle

  Sensor ORP / Redox

• Application

  • Chemical processes
  • Pulp and paper industry
  • Contaminated media:
  • Solids
  • Emulsions
  • Precipitation reactions
  • Dispersions

• Installation

  Installation

• Characteristic

  Digital ORP electrodes with open aperture for contaminated media and integrated temperature sensor

• Measuring range

  –1 500 to 1 500 mV

• Measuring principle

  Gel compact electrode with open aperture and measuring part as platinum cap

• Design

  All shaft lengths with temperature sensor
  Advanced gel technology

• Material

  Sensor shaft: Glass to suit process
  ORP measuring element: Platinum
  Metal lead: Ag/AgCl
  O-ring: FKM
  Process coupling: PPS fiber-glass reinforced
  Nameplate: Ceramic metal oxide

• Dimension

  Diameter: 12 mm (0.47 inch)
  Shaft lengths: 120, 225 and 360 mm
  (4.72, 8.86 and 14.17 inch)

• Process temperature

  0 to 110 °C (32 to 230 °F)

• Process pressure

  0.8 to 14 bar (11.6 to 203 psi) (absolute)

• Temperature sensor

  NTC 30K

• Ex certification

  With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in
  hazardous areas Zone 0, Zone 1 and Zone 2.

• Connection

  Inductive, contactless connection head with Memosens 2.0 technology

• Ingress protection

  IP68
