E+H ENDRESS+HAUSER Disinfection transmitter Liquisys CCM223

E+H ENDRESS+HAUSER Disinfection transmitter Liquisys CCM223

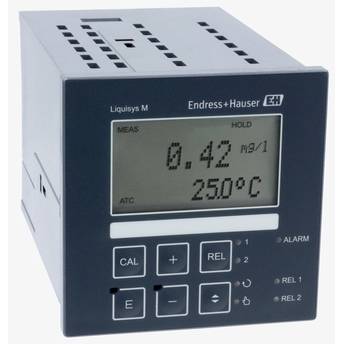

Liquisys CCM223 is a compact panel transmitter for chlorine, chlorine dioxide and pH measurement.

Disinfection transmitter
Liquisys CCM223

Compact panel device for the water, wastewater, food and power industries


  • Measuring principle

    Free chlorine

  • Application

    Drinking water, water, waste water process, pool

  • Characteristic

    4-wire transmitter for free chlorine/Chlordioxide in a panel housing. Simple Calibration via "CAL"-button.

  • Design

    Overload protection, alarm relais, different controller functions (P(ID)), temperature display, 2-line display, current output galvanically separated.

  • Dimension

    96mm x 96mm, built in depth : 146mm.

  • Input

    Chor / Chlordioxide and pH/ORP Sensor.

  • Output / communication

    - Chlor/Chlordioxid, pH, Temperatur : 0/4-20mA- Profibus- Hart + 0/4-20mA
