Dissolved oxygen sensor

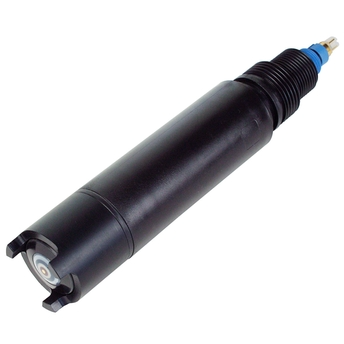

Oxymax COS41

Amperometric oxygen sensor for water, wastewater and utilities

• Measuring principle

  Amperometric oxygen measurement

• Application

  Aeration tank, river monitoring, water treatment, fish farming.

• Characteristic

  Amperometric 2-electrode system to measure dissolved oxygen.

• Measuring range

  0,05 - 20mg/l

• Measuring principle

  Closed (membrane covered) amperometric 2-electrode sensor.

• Design

  - Extreme stable membrane- Analog communication

• Material

  Sensor body : POMMembrane cap : POM

• Dimension

  Diameter : 40mm
  (1.56inch)Length : 220mm
  (8.85inch)

• Process temperature

  max. 50°C
  (122°F)

• Process pressure

  max. 10bar
  (145psi)

• Temperature sensor

  Integrated NTC-sensor

• Connection

  Process connection : G1"Cable : Fixed cable or TOP68 connector
