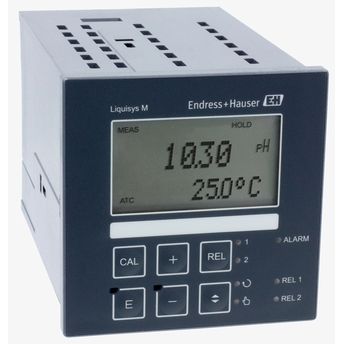

pH/ORP transmitter
Liquisys CPM223

Compact panel device for all industries

• Measuring principle

  Potentiometric

• Application

  Water, waste water, process

• Characteristic

  4-wire transmitter with a two-line display

• Design

  pH/ORP transmitter in a panel housing (96x96 mm)

• Material

  panel housing

• Dimension

  96 mm x 96 mm x 146 mm(built in depth)
  3.74x3.74x5.61 inch (built in depth)

• Temperature sensor

  Display and current output

• Ex certification

  No

• Ingress protection

  IP54

• Input

  One-channel-transmitter

• Output / communication

  0/4-20 mA, Hart, Profibus.

• Certificates, declarations and approvals

  CSA Gen. Purpose
