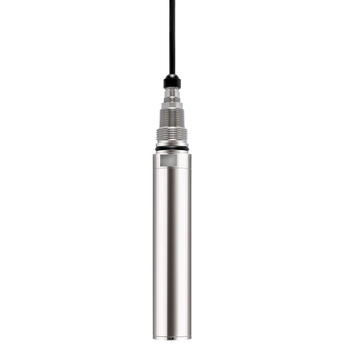

Suspended solids sensor
Turbimax CUS51D

Memosens sensor for suspended solids and turbidity measurement in water, wastewater and utilities

• Measuring principle

  Four beam alternating light

• Application

  Wastewater, process water and primary water treatment applications.
  Turbidity and suspended solids measurement at all stages of the wastewater treatment process and at primary water treatment applications with medium to high turbidities.

• Installation

  Insitu (immersion in process or retractable holder), extractive with sample and flow cell

• Design

  40 mm sensor, stainless steel

• Dimension

  194 mm x 40 mm

• Material

  Stainless steel 316L

• Measuring range

  For formazin: 0 to 4000 FNU
  Display range up to 9999 FNU
  For sludge: 0 to 300 g/L
  The achievable measuring range depends very much on the media

• Connection

  G1, NPT3/4"

• Ingress protection

  IP68 (1 m / 3.3 ft) water column with 1N KCl during 60 days
