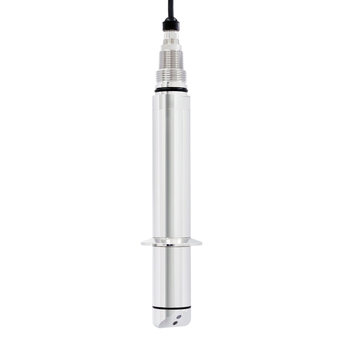

Turbidity sensor
Turbimax CUS52D

Hygienic Memosens sensor for turbidity measurement in drinking water, process water and utilities

• Measuring principle

  Single beam scattered light

• Application

  Turbidity measurement in:
  Drinking and process water
  Saline water
  Utilities of all industries

• Installation

  Inline Insitu, sensor with clamp, flow cell, sensor with clamp, retractables, sensor straight, immersion in open channels

• Design

  40 mm sensor

• Dimension

  40 mm design, hygienic Clamp-version
  320 x 40 mm

• Material

  Stainless steel version: 1.4404
  Plastic version: sensor head: PEEK, shaft: PPS
  Optical windows: sapphire
  O-rings: EPDM

• Measuring range

  0.000 to 4000 FNU

• Process pressure

  Stainles steel version: 0.5 to 10 bar abs (7.3 to 145 psi abs)
  Plastic version: 0.5 to 6 bar abs (7.3 to 87 psi abs)

• Ingress protection

  IP68

• Output / communication

  Memosens
