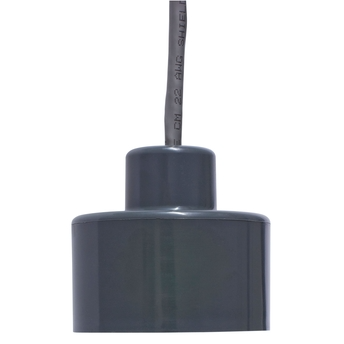

Ultrasonic interface sensor
Turbimax CUS71D

Memosens immersion sensor for sedimentation tanks in water, wastewater and utilities

• Measuring principle

  Ultrasonic sensor

• Application

  Continious interface measurement in sedimentation basins

• Installation

  Submerged sensor with fixed cable

• Measuring range

  0.3 to 10 m (1 to 32 ft)

• Measuring principle

  Ultrasonic return-time measurement

• Material

  Sensor: ABS and epoxy resin
  Wiper: EPDM
  Housing: Polyamide

• Dimension

  Diameter: 74 mm(2.9 inch)
  Lenght standard sensor: 68 mm (2.7 inch)
  Lenght wiper sensor: 135 mm (5.3 inch)

• Process temperature

  1 to 50 °C (34 to 122 °F)

• Process pressure

  Standard version: 0 to 6 bar (0 to 87 psi)
  Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)

• Temperature sensor

  -

• Ex certification

  None

• Connection

  Process connection: G1 and NPT 3/4"
  Fixed cable 15 m

• Ingress protection

  IP68

• Output / communication

  Digital output for connection to Liquiline CM44x

• Certificates, declarations and approvals

  EAC
