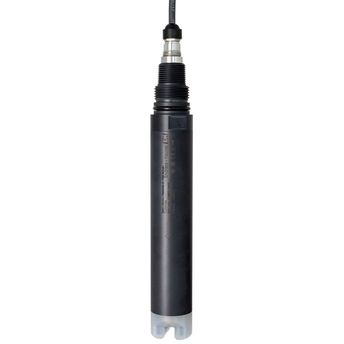

Turbidity and suspended solids sensor
Turbimax CUS50D

Memosens sensor for turbidity, suspended solids and absorption measurement

• Measuring principle

  Absorption

• Application

  Absorption sensor for turbidity and suspended solids measurements in industrial wastewater and processes

• Installation

  Insitu (immersion in process or retractable assembly)

• Design

  40 mm sensor

• Dimension

  209.5 x 40 mm (8.25 x 1.57 inch)

• Material

  Sensor head: PCTFE
  Sensor shaft: 1.4571 stainless steel (316TI) or plastic (PPS GF40)
  O-ring: EPDM

• Measuring range

  40 to 4 000 FAU
  0 to 60 g/L suspended solids
  0 to 10 OD

• Process pressure

  0.5 to 4.5 bar (7.3 to 65.3 psi) absolute

• Connection

  G1, NPT3/4

• Ingress protection

  IP68
