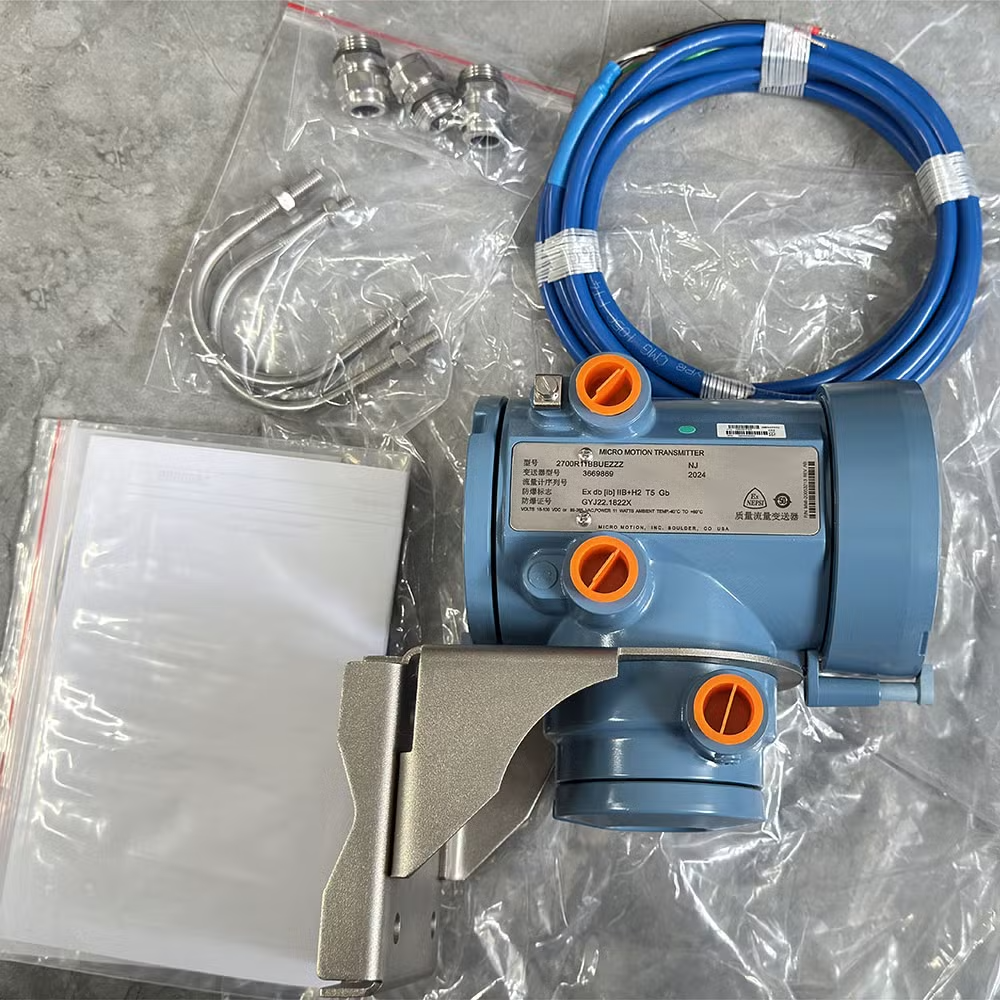

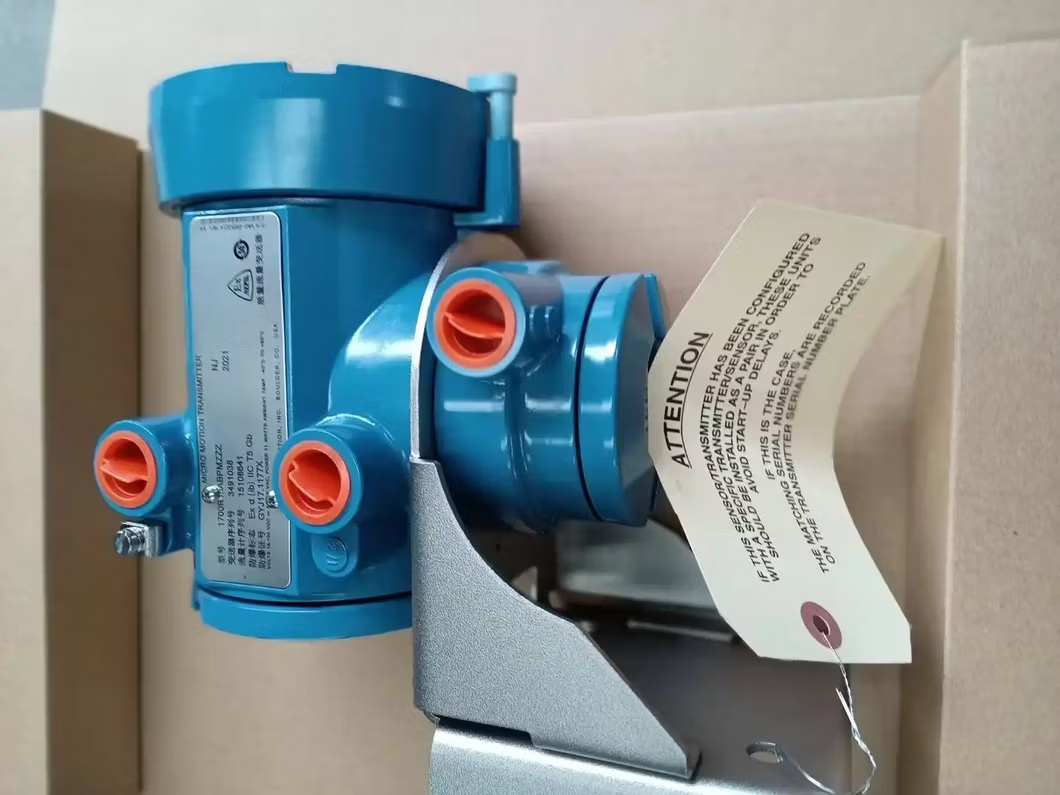

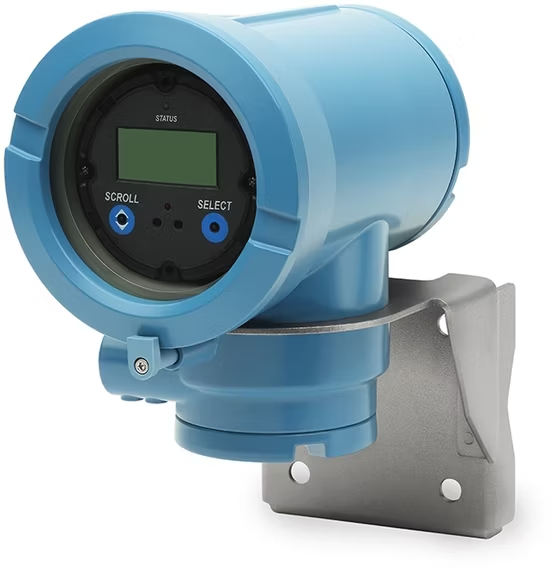

Emerson Micro Motion 1700 Single Variable Field Mount Flow Transmitter
Emerson Micro Motion 1700 Single Variable Field Mount Flow Transmitter
Product Description
Powered by MVD Technology, these versatile field-mount transmitters are built with an advanced architecture and provide a wide variety of I / O and application flexibilities, making them the top choice for compact integral mounting.
1.Maximize flexibility with integral or remote mounting
2.Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing
3.Lower wiring costs and install easily and quickly
4.Eliminate the need for additional instruments with concentration and net flow measurement
5.Rely on custody-transfer approval and certification for SIL2 and SIL3
6.Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
7.Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™
8.Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
Specifications
HousingPolyurethane-paintedcast aluminum or stainless steel; NEMA 4X (IP66)
WeightPainted aluminum, 4-wire remote:
with display: 8 lb (4 kg)
without display: 7 lb (3kg)
Painted aluminum, 9-wire remote:
with display: 14 lb (6 kg)
without display: 13 lb (6 kg)
Stainless steel, 4-wire remote:
with display: 21 lb (10 kg)
without display: 20 lb (9 kg)
View product data sheet for full details.
MountingIntegralor remote mounting options (stainless steel versions are remote mount only)Maybe remotely connected to any 4-wire or 9-wire Micro Motion sensorView product data sheet for full details.
Available Outputs1700: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
2700:
Analog: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
Configurable I/O: mA w/Bell 202 HART configurable to mA, FO, or DO (default mA)configurable to FO, DO, orDI (default FO)
View product data sheet for full details.
