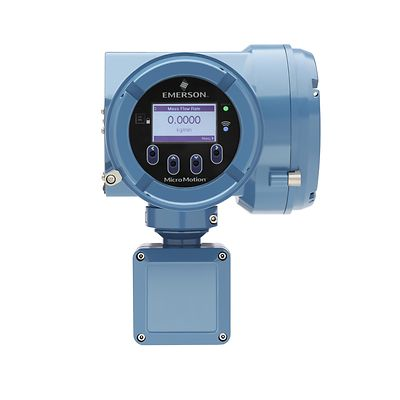

Delivering the best in measurement technology and unparalleled support, the 5700 transmitter's intuitive design ensures measurement confidence, valuable process insight and productivity through simplified solutions. Data historian feature captures rich information about process events, fluid quality, and measurement stability - over long and short periods of time. Zero Verification tool provides confidence in the meter zero and analyzes process conditions to indicate potential issues for re-zeroing.

Features

Perform fast, flexible installations with a native Ethernet architecture and connections

Achieve the best response in the most challenging applications, such as meter proving, filling and dosing and batching

Capture short- and long-term insight about process events, fluid quality and measurement stability with a data historian

Monitor more process measurements with availability of up to 5 fully configurable I/O channels

Check meter health in fewer than 90 seconds with Smart Meter Verification

Easily confirm calibration when it’s time to re-zero the meter with zero verification

Improve process control with real-time indication of multi-phase flow events

Minimize the time and expertise needed to install and operate the flow meter

Specifications

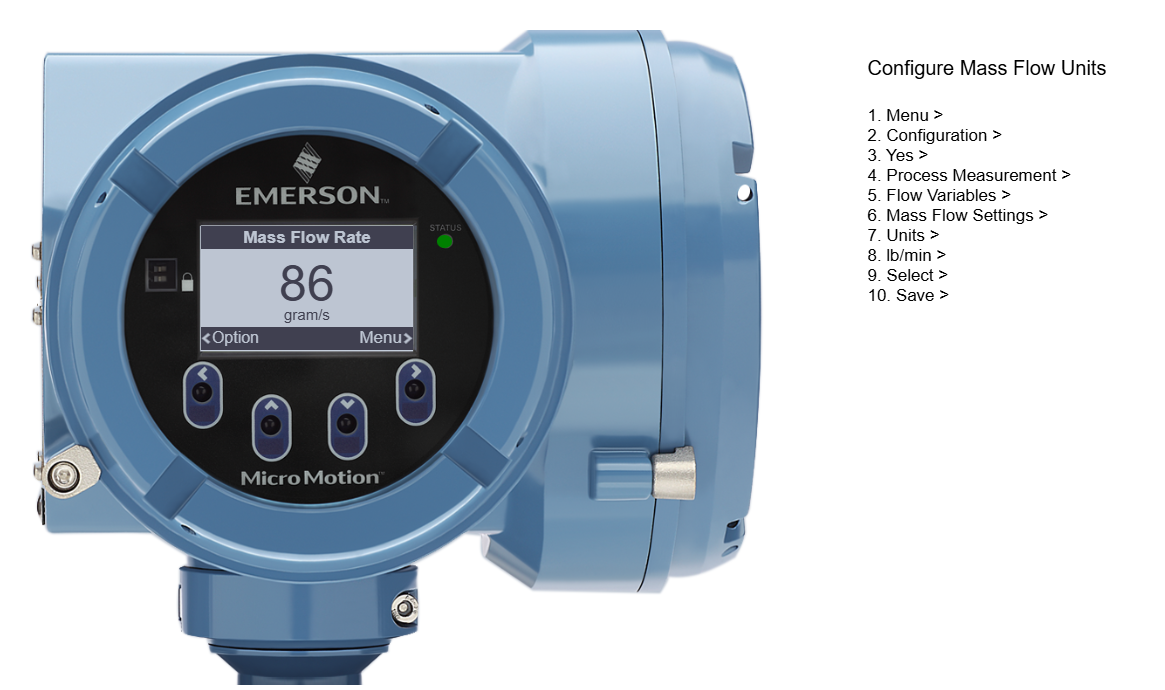

Local display

Graphical backlit display

Four-button optical controls

Flowmeter-status LED

Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.

Power

Self-switching AC/DC input, automatically recognizes supply voltage

85 to 2405 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum

18 to 100 VDC, 6 watts typical, 11 watts maximum

Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2

Universal Service PortUniversal Service Port design allows for connection and data transfer using standard, readily available equipment.

Configurable I/O versionUp to 5 licensable channels with the following possible configurations:

1 to 3 4-20 mA outputs

1 to 3 Pulse outputs

1 to 3 Discrete outputs

1 to 2 Discrete inputs

1 mA input

1 Modbus/RS-485

Channel A: mA/HART

Channel B: mA/FO/DO

Channel C: mA/FO/DO/DI

Channel D: mA-input/FO/DO/DI

Channel E: Modbus RS-485

Communication ProtocolWirelessHART

WirelessHART available with the 775 Smart Wireless THUM adapter.

FOUNDATION Fieldbus version

FOUNDATION Fieldbus channel

mA output

Pulse output

PROFIBUS-PA version

PROFIBUS-PA channel

mA IS output

Pulse IS output

Wi-Fi Display Option:Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only.

Intrinsically Safe versionUp to 4 licensable IS channels with the following configurations:

Channel A: mA/HART

Channel B: mA

Channel C: mA/FO

Channel D: FO

Channel E: Not Used

SIL Certified Device Available – Uses an internal readback loop to verify the milliamp output

Ethernet version

Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device

Additional channel included configurable to mA output, pulse output, discrete output, or discrete input

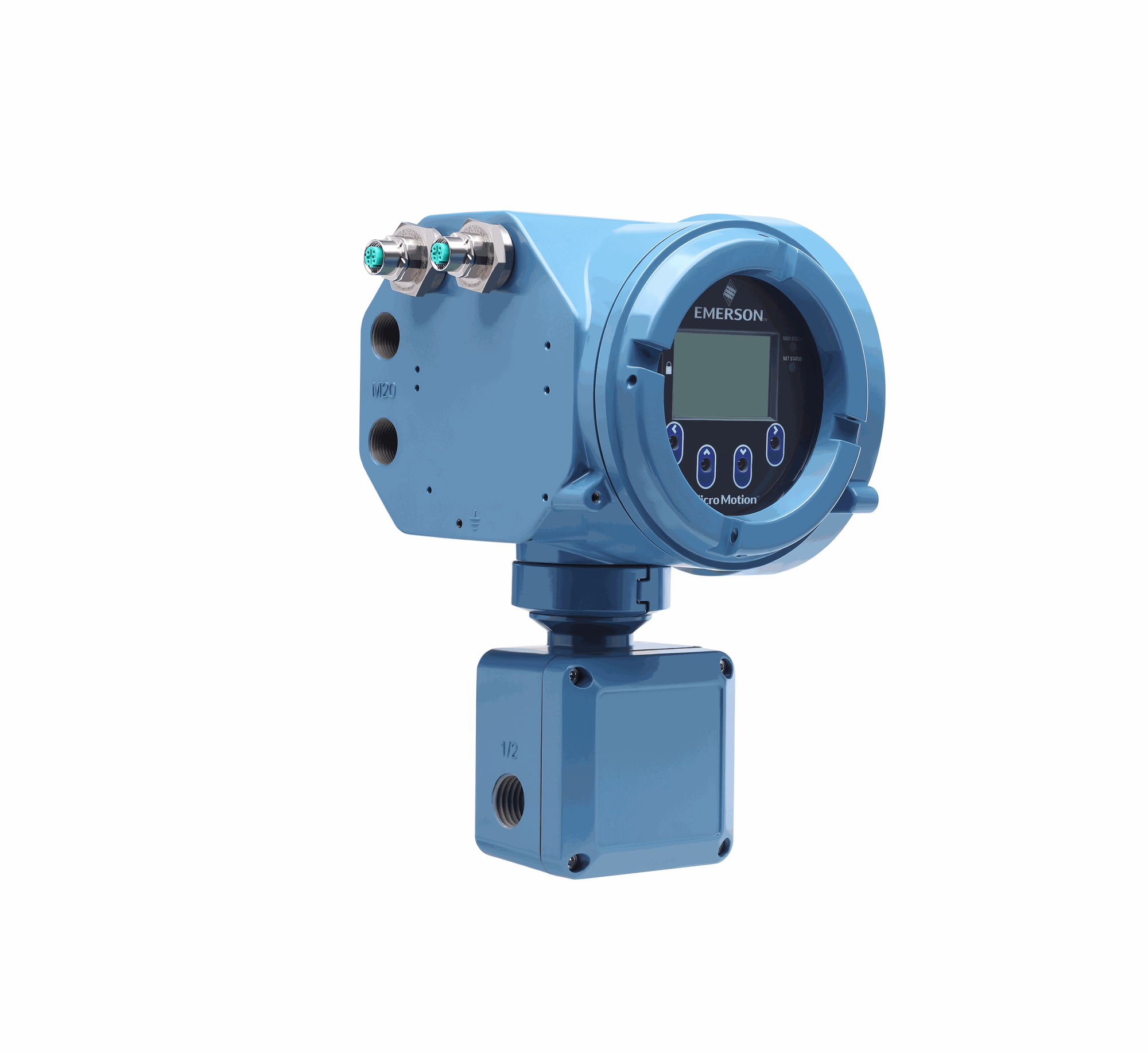

Pre-installed M12 quick connections available as an option

Mounting options

Field-mount aluminum and stainless steel housing options

Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)

Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)

Application types

Smart Meter Verification Professional

Discrete batch control

Petroleum measurement and API correction option

Concentration measurement

Advanced Phase Measurement for two phase flow remediation

Piecewise Linearization for Gas Applications

Certificates/ApprovalsHazardous approvals

Class I, Div. 1

Class I, Div. 2

Zone 1

Zone 2

SIL/SIS Certification

5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section.
