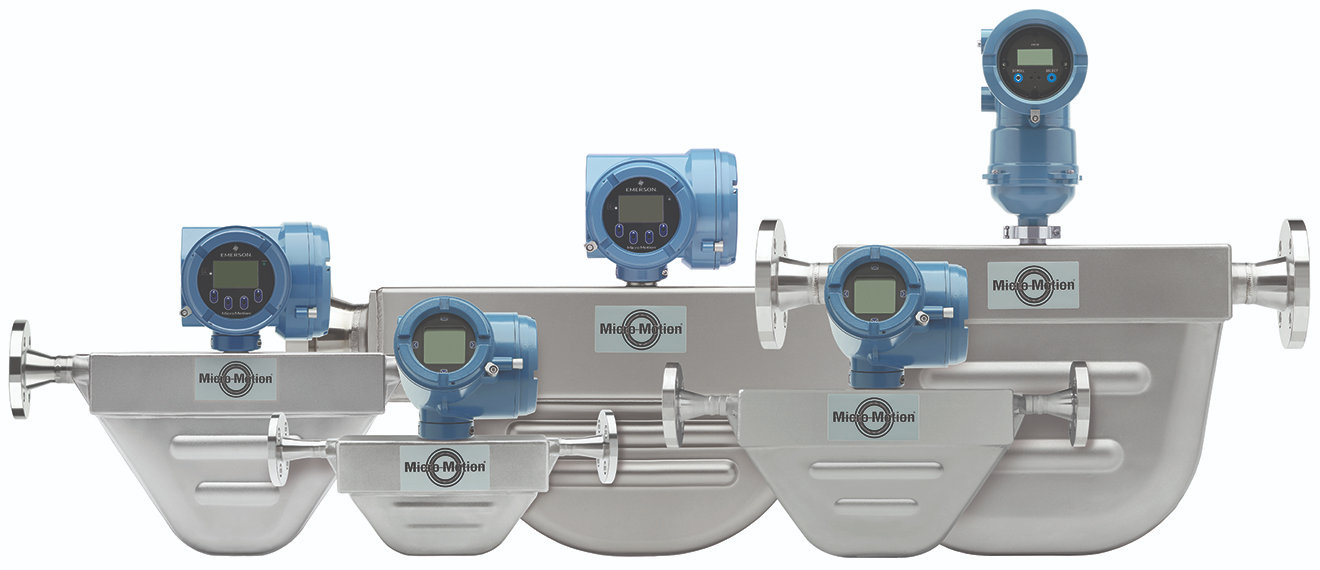

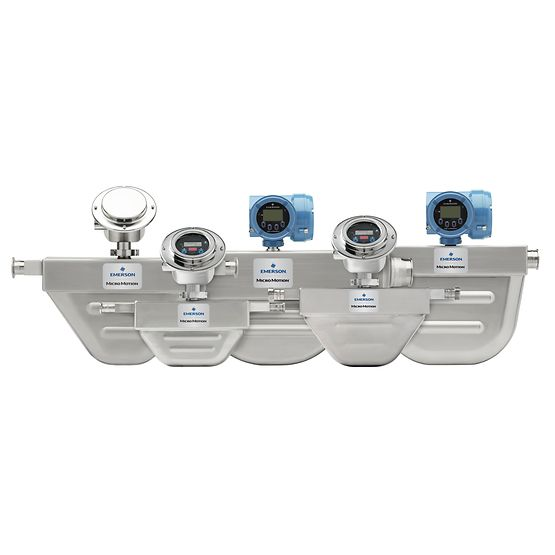

Emerson Micro Motion H-Series Hygienic Coriolis Flow and Density Meters
Micro Motion H-Series Hygienic Coriolis Flow and Density Meters
Product Description
Ideal for hygienic process-control applications, H-Series flow meters are accurate, low frequency, fit-and-forget meters with a compact, drainable, cleanable design. Get reliable performance under extreme process conditions, including entrained gas.
Specifications
Liquid Accuracy / RepeatabilityUp to ±0.05% of rate (±0.025% repeatability)
Gas Accuracy / RepeatabilityUp to ±0.35% of rate ( ±0.25% repeatability)
Density Accuracy / RepeatabilityUp to ±0.0005 g/cm3 ( ±0.0002 g/cm3 repeatability)
Line Size1/4" (DN6) - 4" (DN100)
Pressure RangeUp to 1450 psig (100 barg)
Temperature Range-148°F to 400°F (-100°C to 204°C)
ElectronicsExpansive I/O options including mA, frequency, discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus
Turndown20:1
Features
Minimize variability in process control with superior sensitivity in a compact design
Ensure product consistency and quality with superior density measurement
Enable fast product change-over with self-draining design and superior temperature stability
Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings
Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required
