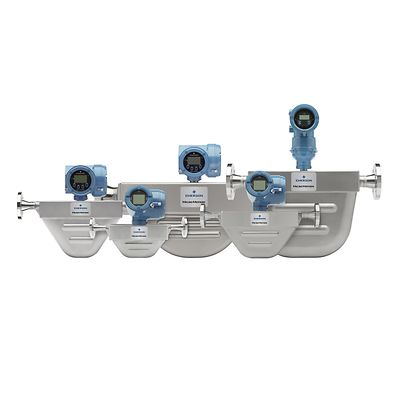

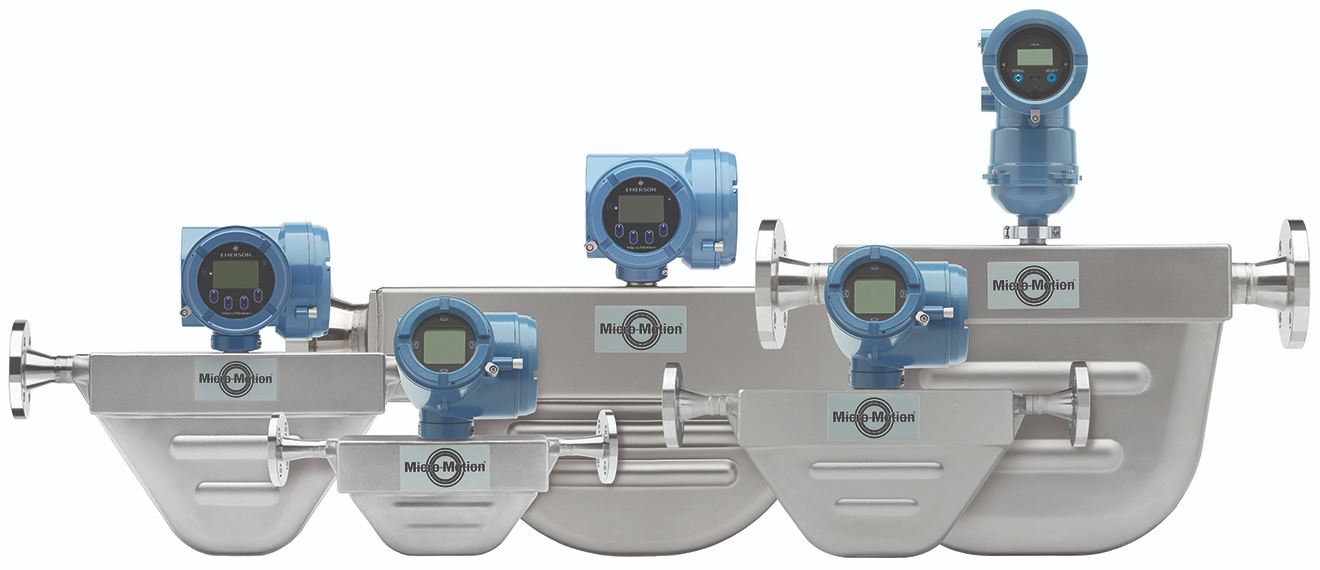

Low-footprint, drainable R-Series Coriolis flow meters provide accurate flow and density measurements. They are ideally suited for general purpose applications that typically require repeatable, reliable, low-maintenance measurements.

Specifications

Liquid Accuracy / RepeatabilityUp to ±0.4%of rate (±0.2%; of rate)

Gas Accuracy / RepeatabilityUp to ±0.75%of rate (±0.5%of rate)

Density Accuracy / RepeatabilityUp to ±0.003 g/cm3 (±0.0015 g/cm3)

Line Size1/4" (DN6) - 3" (DN80)

Pressure RangeUp to 1450 psig (100 barg)

Temperature Range-148 to 302°F (-100 to 150°C)

Electronics (soft)Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus

Turndown10:1

Features

Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design

Increase flexibility with available 316L stainless steel construction that is compatible with most fluids

Cut costs with an integral transmitter that provides a flow-variable-only architecture

Choose from rugged transmitter options including: Class I, Division 1/Zone 1 housing with optional local-operator interface

Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR

Minimize maintenance and boost long-term reliability with no moving parts to wear or replace

Install virtually anywhere with compact design
