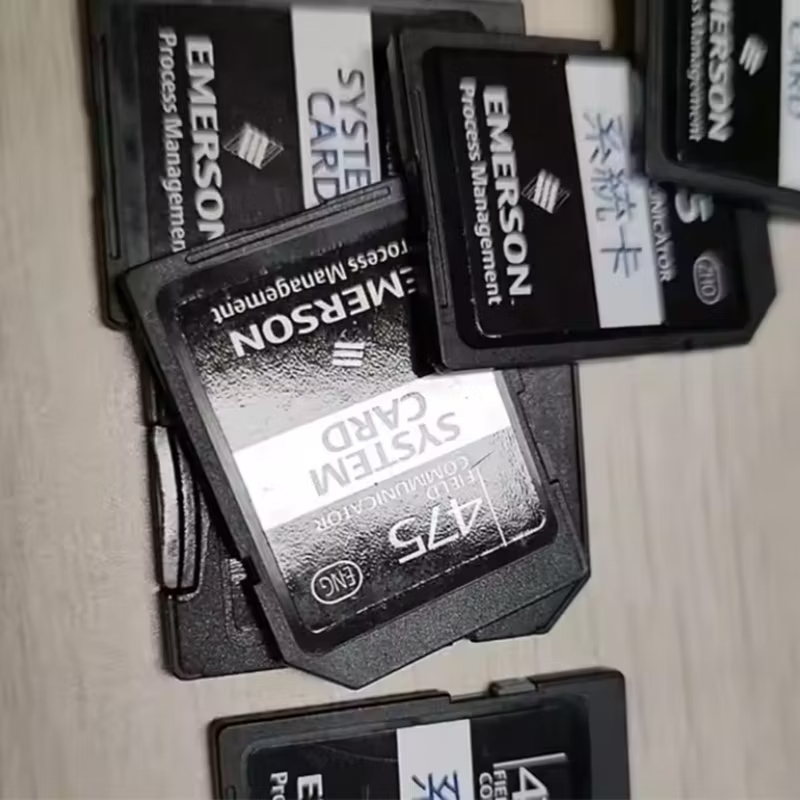

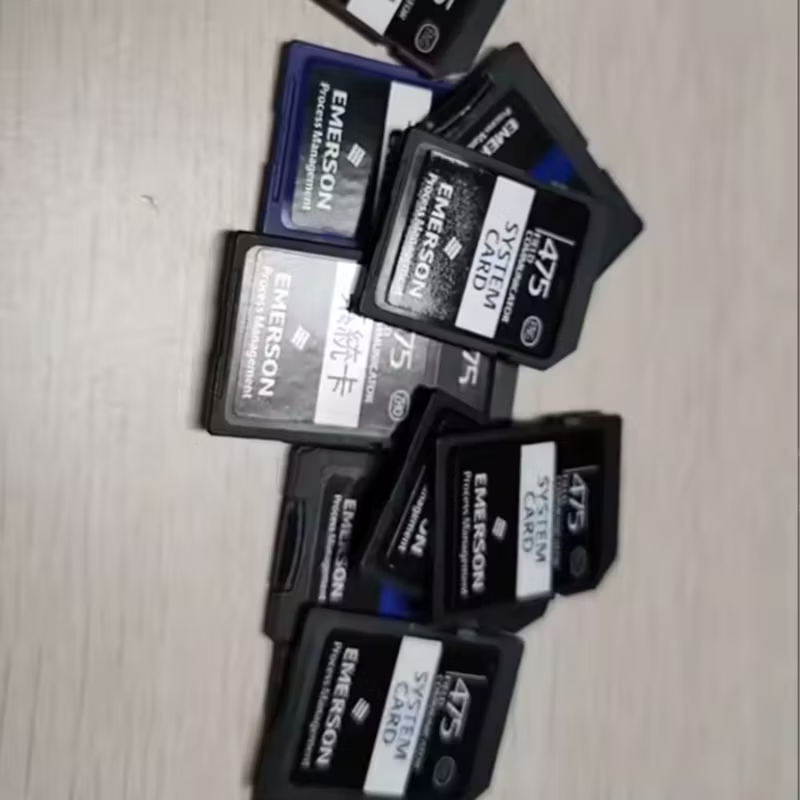

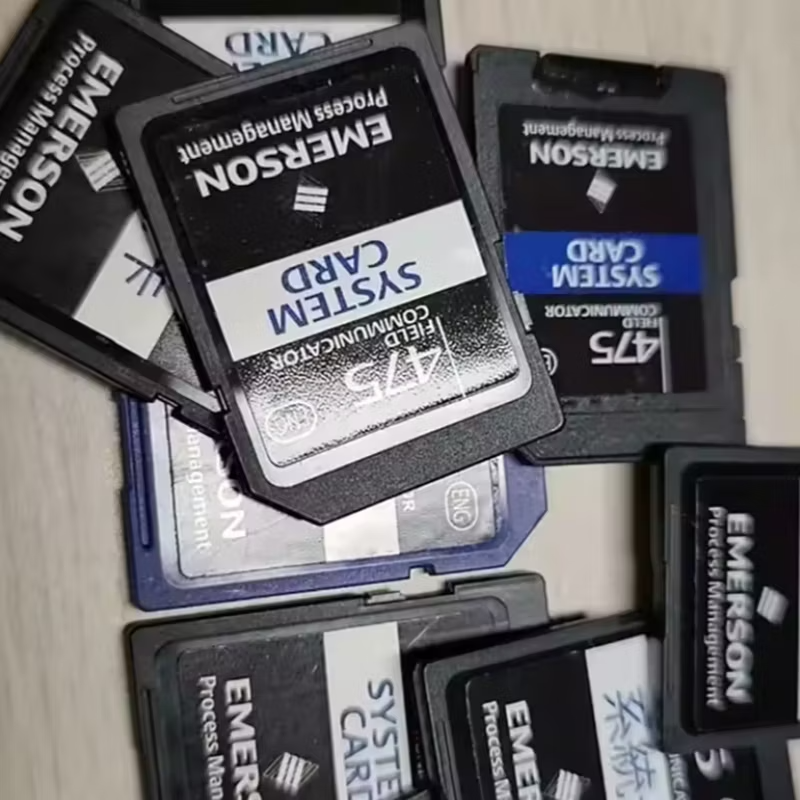

Emerson Rosemount 475 Field Communication System Upgrade Card
Rosemount 475 Field Communicator System Upgrade Card - Product Introduction
1. Overview
The Rosemount 475 Field Communicator is a versatile handheld device designed for configuring, calibrating, and troubleshooting HART® and FOUNDATION™ Fieldbus devices. To enhance its functionality and ensure compatibility with the latest device descriptions (DDs) and firmware, Emerson offers the Rosemount 475 System Upgrade Card. This upgrade card provides users with access to the latest device libraries, improved communication protocols, and extended device support, ensuring seamless integration with modern process control systems.
This document provides a detailed introduction to the Rosemount 475 System Upgrade Card, covering its features, benefits, technical specifications, installation process, and applications.
2. Key Features
The Rosemount 475 System Upgrade Card offers several advanced features to optimize device management and field operations:
2.1. Latest Device Library Updates
Includes updated Device Descriptions (DDs) for HART and FOUNDATION Fieldbus devices.
Supports new instrument models from Rosemount and other leading manufacturers.
Ensures compatibility with the latest firmware versions.
2.2. Enhanced Communication Protocols
Improved HART 7 protocol support for faster and more reliable communication.
Expanded FOUNDATION Fieldbus functionality for advanced diagnostics.
Backward compatibility with legacy HART devices.
2.3. User-Friendly Interface
Intuitive menu navigation for quick access to device parameters.
Multilingual support for global applications.
Simplified firmware update process.
2.4. Extended Battery Life & Performance
Optimized power management for prolonged field use.
Faster processing speed for efficient device configuration.
2.5. Secure & Reliable Updates
Encrypted update files to prevent unauthorized modifications.
Automatic validation checks to ensure successful installation.
| Parameter | Specification |
| System Card Capacity | 1 GB or higher (supports future expansion) |
| Memory Type | NAND flash memory |
| Internal Flash Memory | 2 GB (Trex upgrade version) |
| Expansion Flash Memory | Up to 32 GB (Trex upgrade version) |
| Upgrade Method | Internet download (in-field upgrade for HART and FOUNDATION fieldbus content) |
| Easy Upgrade Option | 3-year upgrade capability (via code "U" in model number) |
| Compatibility | Supports all HART 5, HART 7, and Foundation Fieldbus devices |
| Graphics Support | Enhanced graphical features (e.g., charts, graphs, gauges) for HART/FF applications (code "GM") |
| Configuration Storage | Stores over 1,000 device configurations (with Device Configuration Management) |
| Operating System | Windows CE (475) / Windows Embedded Compact 2013 (Trex upgrade) |
3. Benefits of the Upgrade Card
Upgrading the Rosemount 475 Field Communicator with the System Upgrade Card provides significant advantages:
3.1. Improved Device Compatibility
Ensures seamless interaction with newly released field instruments.
Reduces compatibility issues during calibration and diagnostics.
3.2. Increased Operational Efficiency
Faster device configuration and troubleshooting.
Reduces downtime by enabling quick access to updated device parameters.
3.3. Future-Proof Investment
Extends the lifespan of the Rosemount 475 by keeping it up-to-date.
Avoids the need for frequent hardware replacements.
3.4. Enhanced Diagnostic Capabilities
Advanced diagnostic tools for predictive maintenance.
Detailed device health reports for improved decision-making.
3.5. Compliance with Industry Standards
Meets the latest NAMUR, IEC, and HART Communication Foundation requirements.
4. Technical Specifications
| Parameter | Specification |
| Compatibility | Rosemount 475 Field Communicator |
| Supported Protocols | HART 5/6/7, FOUNDATION Fieldbus |
| Update Method | SD Card (included) |
| Storage Capacity | 8GB (expandable) |
| Supported Languages | English, Spanish, French, German, Chinese, and more |
| Security Features | Encrypted firmware, authentication checks |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Battery Requirements | Compatible with standard Rosemount 475 batteries |
5. Installation & Upgrade Process
Upgrading the Rosemount 475 Field Communicator is a straightforward process:
5.1. Pre-Installation Checklist
Ensure the device is fully charged or connected to a power source.
Back up existing configurations (if necessary).
Verify the correct upgrade card version for your device.
5.2. Step-by-Step Upgrade Procedure
Insert the Upgrade Card - Place the SD card into the designated slot.
Power On the Device - The system will detect the new firmware automatically.
Follow On-Screen Instructions - Confirm the installation when prompted.
Restart the Device - The Rosemount 475 will reboot with the updated firmware.
Verify the Update - Check the firmware version in the system settings.
5.3. Post-Installation Verification
Test communication with field devices to ensure proper functionality.
Review new features and updated device libraries.
6. Applications
The Rosemount 475 System Upgrade Card is essential for industries that rely on precise instrumentation, including:
Oil & Gas - Configuration of pressure transmitters, flow meters, and control valves.
Chemical & Petrochemical - Calibration of temperature sensors and analytical instruments.
Power Generation - Diagnostics of turbine control systems.
Pharmaceutical & Food Processing - Compliance with hygienic measurement standards.
Water & Wastewater Treatment - Monitoring and maintenance of flow and level devices.
7. Conclusion
The Rosemount 475 System Upgrade Card is a cost-effective solution to enhance the capabilities of the Rosemount 475 Field Communicator. By providing the latest device libraries, improved communication protocols, and extended functionality, it ensures seamless integration with modern industrial automation systems.
