Capacitance
Point level detection

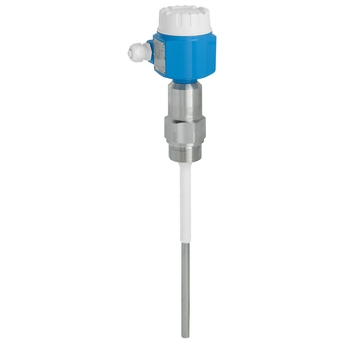

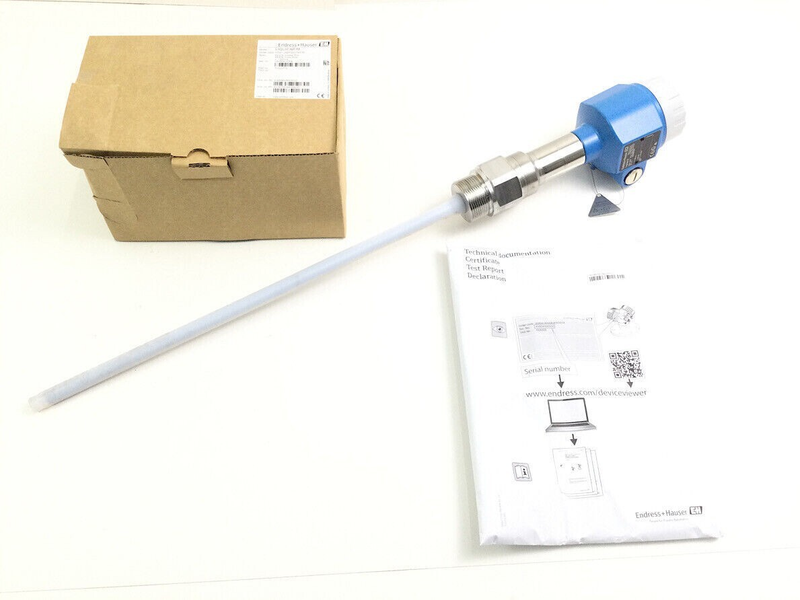

Liquicap FTI51

For liquids that are highly viscous and tend to form build-up

• Measuring principle

  Capacitive Liquid

• Characteristic / Application

  Capacitive rod probe

• Specialities

  Interface detection
  Foam detection

• Ambient temperature

  -50 °C ... +70 °C
  (-58 °F ... +158 °F)
  With separate housing:
  -50 °C ... +120 °C
  (-58 °F ... +248°F)

• Process temperature

  -80 °C ... +200 °C
  (-112 °F ... +392 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 100 bar
  (Vacuum ... 1450 psi)

• Main wetted parts

  Insulation material: PTFE, PFA
  316L

• Process connection

  G 1/2 ... 1 1/2
  NPT 1/2 ... 1 1/2
  Flange from DN25.../ASME 1".../JIS 10K...

• Process connection hygienic

  Tri-Clamp ISO2852 gap free plated
  Dairy coupling
  Flush mount

• Sensor length

  Total length of probe: max 6 m (20 ft)

• Communication

  2- wire 19-253 VAC
  3-wire
  PFM
  Relay DPDT
  DC-PNP
  8/16 mA

• Certificates / Approvals

  ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, EAC

• Safety approvals

  Overfill prevention WHG
  SIL

• Design approvals

  EN 10204-3.1
  NACE MR0175

• Marine approval

  GL/ ABS/ DNV

• Options

  Inactive length
  Fully isolated active build-up compensation
  Ground tube
  Separate housing

• Components

  Transmitter
  PFM: FTC325, FTC625, FTC470Z, FTC471Z
  3-wire:
  FTC325

• Application limits

  Notice the pressure and temperature derating.
  Notice for non conductive medium the DK.
