Conductive
Point level detection

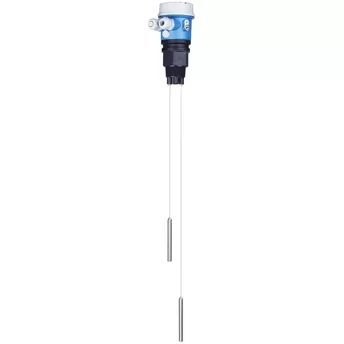

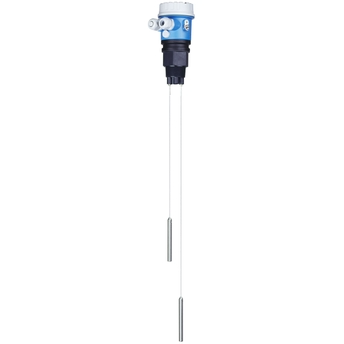

Liquipoint FTW32

Rope probe for multipoint detection for up to
5 switch points

• Measuring principle

  Conductive

• Characteristic / Application

  Compact rope probe with multi point detection possible up to 5 switch points. Simple rope shortening possible

• Supply / Communication

  DC PNP 10,8V ... 45V
  Relay 20V ... 230V AC
  Relay 20V ... 55V DC

• Ambient temperature

  -40 °C ... 70 °C
  (-40 °F ... 158 °F)

• Process temperature

  -40 °C ... 70 °C
  (-40 °F ... 158 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 10 bar
  (Vacuum ... 145 psi)

• Min. conductivity of medium

  10 µS/cm

• Main wetted parts

  316L, FEP, PPS

• Max. tensile strength

  500 N

• Process connection

  G 1 1/2
  NPT1 1/2"

• Sensor length

  0.25m ... 15m
  (10" ... 590")

• Communication

  DC PNP
  Relay

• Certificates / Approvals

  ATEX, EAC Ex

• Safety approvals

  Leakage Detection

• Components

  Transmitter: FTW325

• Application limits

  Observe min. medium conductivity
