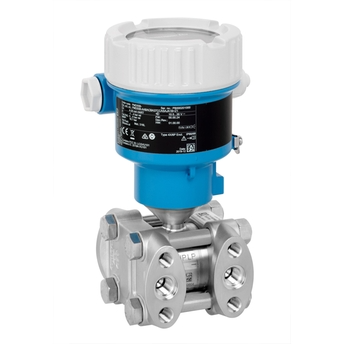

Deltabar PMD55B - differential pressure transmitter

Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases

• Measuring principle

  Differential pressure

• Characteristic / Application

  Transmitter with metal membrane for differential pressure monitoring in liquids or gases.
  Intuitive and clear wizard for commissioning

• Specialities

  Bluetooth® Operation and maintenance with SmartBlue App,
  RFID TAG for easy identification,
  Plug and play functionalities

• Supply / Communication

  Ex d, Ex e, non-Ex::
  10.5...35V DC
  Ex i: 10.5...30V DC

• Accuracy

  Standard:
  up to 0.075 %
  Platinum:
  up to 0.055 %

• Long term stability

  0.05 % of URL/ year
  0.13 % of URL/ 5 years
  0.23 % of URL/ 10 years

• Ambient temperature

  -40°C...+85°C (-40°F...+185°F)

• Process temperature

  -40°C...+110°C (-40°F...+230°F)

• Process pressure / max. overpressure limit

  250 bar (3750 psi)

• Pressure measuring range

  10 mbar.... 40 bar (0.15 psi... 600 psi)

• Main wetted parts

  316L, AlloyC

• Process connection

  NPT 1/4-18, RC1/4"

• Communication

  4...20 mA HART
  PROFINET with Ethernet-APL
  Bluetooth® wireless
  technology and app (optional)

• Certificates / Approvals

  ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex

• Safety approvals

  SIL

• Design approvals

  EN 10204-3.1,
  NACE MR0175,
  NACE MR0103,
  AD2000

• Drinking water approvals

  NSF, KTW

• Application limits

  None
