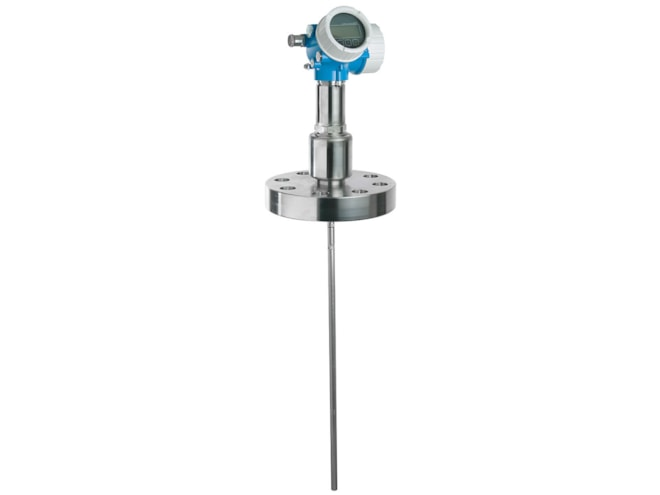

Endress+Hauser Guided radar measurement Time-of-Flight Levelflex FMP50

Endress+Hauser Guided radar measurement Time-of-Flight Levelflex FMP50

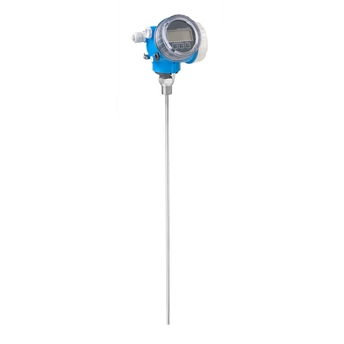

Levelflex FMP50 - Guided radar

Guided radar measurement
Time-of-Flight
Levelflex FMP50

For all basic level applications in liquids


  • Measuring principle

    Guided radar

  • Characteristic / Application

    Basic device
    Rod probe, Rope probe
    Integrated data memory, Factory precalibrated, Reliable measuring for changing medias.

  • Specialities

    Heartbeat Technology,
    Bluetooth® commissioning,
    Operation and maintenance SmartBlue App,
    HistoROM,
    RFID TAG for easy identification

  • Supply / Communication

    2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
    4-wire (HART)
    Bluetooth® wireless technology and App (optional)

  • Accuracy

    Rod probe: +/- 2 mm (0.08 in)
    Rope probe: +/- 2 mm (0.08 in)

  • Ambient temperature

    -20...+80 °C
    (-4...+176 °F)

  • Process temperature

    -20...+80 °C
    (-4...+176 °F)

  • Process pressure / max. overpressure limit

    Vacuum...6 bar,
    (Vacuum...87 psi)

  • Main wetted parts

    Rod probe: 316L, PPS, Viton
    Rope probe: 316, PPS, Viton

  • Process connection

    Thread:
    G 3/4, MNPT 3/4
    Flange:
    UNI Flange

  • Sensor length

    Rod probe: 4 m (13 ft)
    Rope probe: 12 m (40 ft)

  • Max. measurement distance

    Rod: 4 m (13 ft) Min DK>1.6
    Rope: 12 m (40 ft) Min DK>1.6

  • Communication

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus
    Bluetooth® wireless technology

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, UK Ex

  • Safety approvals

    Overfill protection WHG
    SIL

  • Design approvals

    EN 10204-3.1

  • Options

    Sensor remote with 3 m/ 9 ft cable,
    Remote operation via SmartBlue App using Bluetooth®

  • Application limits

    Application limits
