Hydrostatic Level measurement

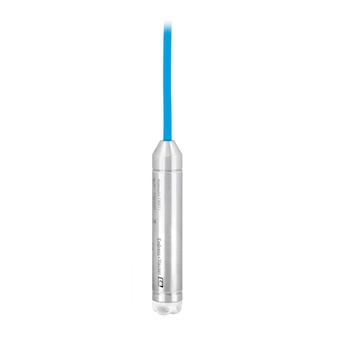

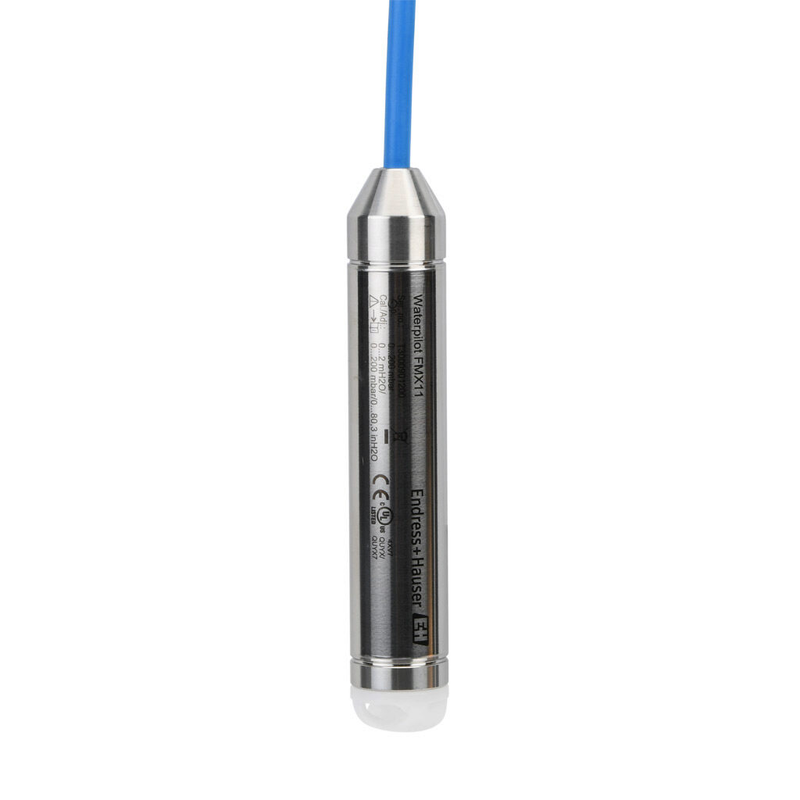

Waterpilot FMX11

Simple and reliable level probe for freshwater applications

• Measuring principle

  Hydrostatic pressure

• Characteristic

  Compact probe with metallic cell for hydrostatic level measurement
  in fresh water, ground water and potable water storage.

• Supply voltage

  8...28 VDC

• Reference Accuracy

  pn ≥ 400mbar: 0.35 %
  pn < 400mbar: 0.50 %

• Long term stability

  0.1 % of URL/year

• Process temperature

  -10°C...+70°C
  (+14°F...+158°F)

• Ambient temperature

  -10°C...+70°C
  (+14°F...+158°F)

• Measuring cell

  200 mbar...2 bar
  (3 psi...29 psi)

• Process connection

  Suspension clamp
  Cable mounting screws

• Material process membrane

  Metal

• Communication

  4...20 mA

• Drinking water approvals

  NSF, KTW, ACS
